Product CatalogPart Number
AMPLA1306S-R30MT
Manufacturer
Abracon LLCDescription
FIXED IND 300NH 48A 0.72MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
88,829 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMPLA1306S-R30MT
AMPLA1306S-R30MT
lmages are for reference only.Payment Methods
Delivery Services
300 nH Shielded Molded Inductor 48 A 0.72mOhm Max Nonstandard
Quick Inquiry
AMPLA1306S-R30MT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AMPLA1306S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 300 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 48 A |
| Current - Saturation (Isat) | 72A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.72mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | AMPLA1306S-R30MT | AMPLA1306S-R33MT | AMPLA1306S-R36MT | AMPLA1306S-100MT |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 300NH 48A 0.72MOHM SMD | FIXED IND 330NH 46A 0.8 MOHM SMD | FIXED IND 360NH 45A 0.9 MOHM SMD | FIXED IND 10UH 10A 16.5 MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
AMPLA1004S-100MT
Abracon LLC
AMPLA1004S-150MT
Abracon LLC

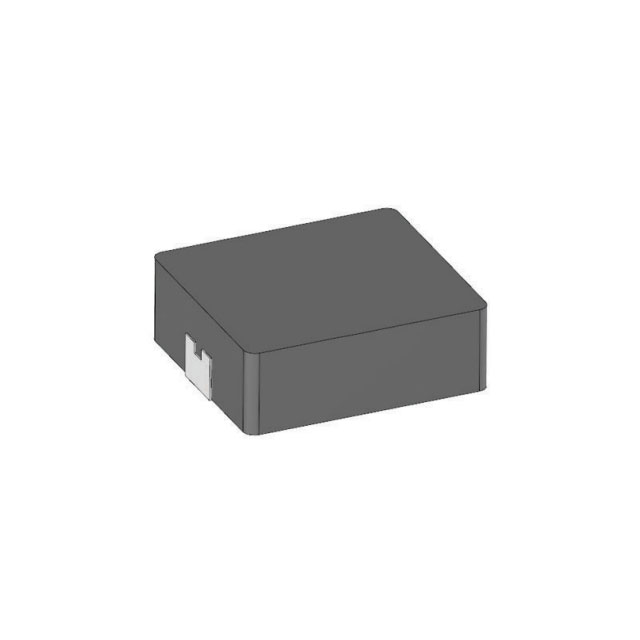

AMPLA1004S-180MT
