Product CatalogPart Number
AMPLH4020S-5R6M-T
Manufacturer
Abracon LLCDescription
FIXED IND 5.6UH 3.5A 78.2MOHM SM
Datasheet
DatasheetPackage
2-SMD, J-Lead
In Stock
68,595 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMPLH4020S-5R6M-T
AMPLH4020S-5R6M-T

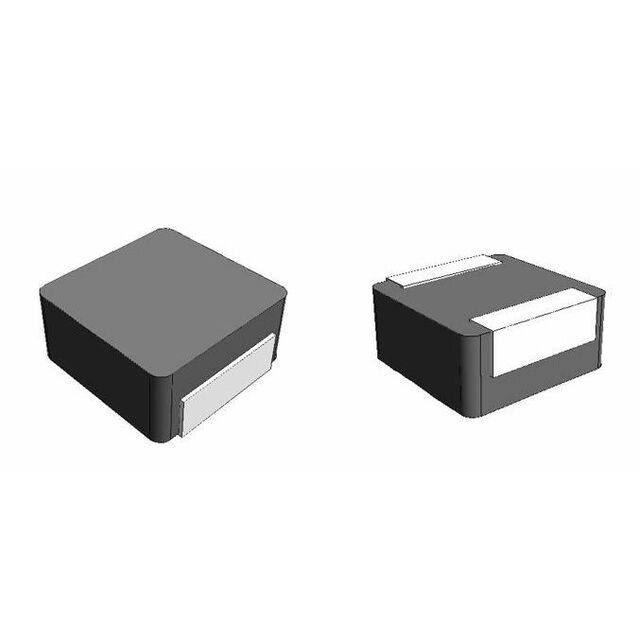

lmages are for reference only.Payment Methods
Delivery Services
5.6 µH Shielded Molded Inductor 4.1 A 78.2mOhm Max 2-SMD, J-Lead Low DCR, Soft Saturation
Quick Inquiry
AMPLH4020S-5R6M-T
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AMPLH4020S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.1 A |
| Current - Saturation (Isat) | 4.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 78.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | Low DCR, Soft Saturation |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.169" L x 0.165" W (4.30mm x 4.20mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | AMPLH4020S-5R6M-T | AMPLH4020S-5R6MT | AMPLH4020S-100MT | AMPLH4020S-1R0MT |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.6UH 3.5A 78.2MOHM SM | IND 5.6UH 3.5A 78.2M | FIXED IND 10UH 2.9A 145MOHM SMD | FIXED IND 1UH 9.5A 13.8MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
