AMS22B5A1BHASL121N
lmages are for reference only.AMS22B5A1BHASL121N

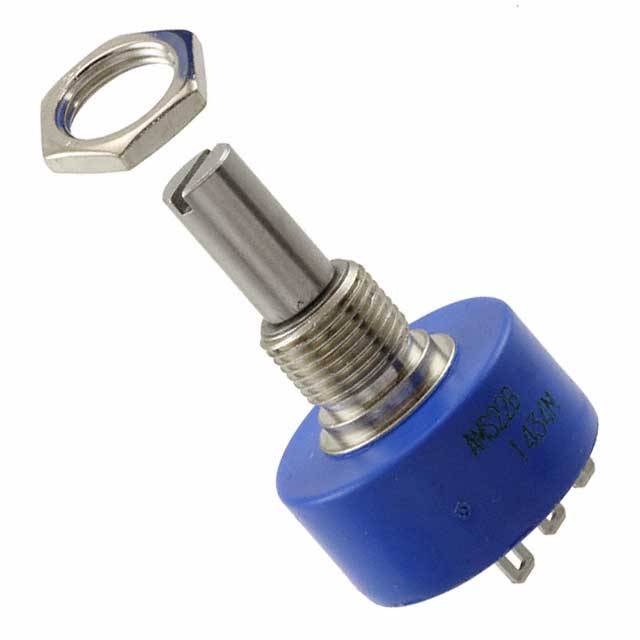

SENSOR ROTARY 210DEG SOLDER LUG
DatasheetModule, Slotted Shaft
26,612 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position Slotted Shaft Solder Lug
AMS22B5A1BHASL121N
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Bourns Inc. |
| Series | AMS22B |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 10° ~ 210°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Counterclockwise Increase |
| Actuator Type | Slotted Shaft |
| Linearity | ±0.5% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 5V |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Module, Slotted Shaft |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | AMS22B |
| Product Attribute |  |
 |
 |
 |
| Part Number | AMS22B5A1BHASL101N | AMS22B5A1BHASL103N | AMS22B5A1BHASL105N | AMS22B5A1BHASL106N |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR ROTARY 10DEG SOLDER LUG | SENSOR ROTARY 30DEG SOLDER LUG | SENSOR ROTARY 50DEG SOLDER LUG | SENSOR ROTARY 60DEG SOLDER LUG |
| Series | AMS22B | AMS22B | AMS22B | AMS22B |
| Packaging | Bulk | Bulk | Bulk | Bulk |
