Product CatalogPart Number
AMSRB1-783.3JZ
Manufacturer
aimtecDescription
DC DC CONVERTER 3.3V 3.3W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
22,930 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMSRB1-783.3JZ
AMSRB1-783.3JZ

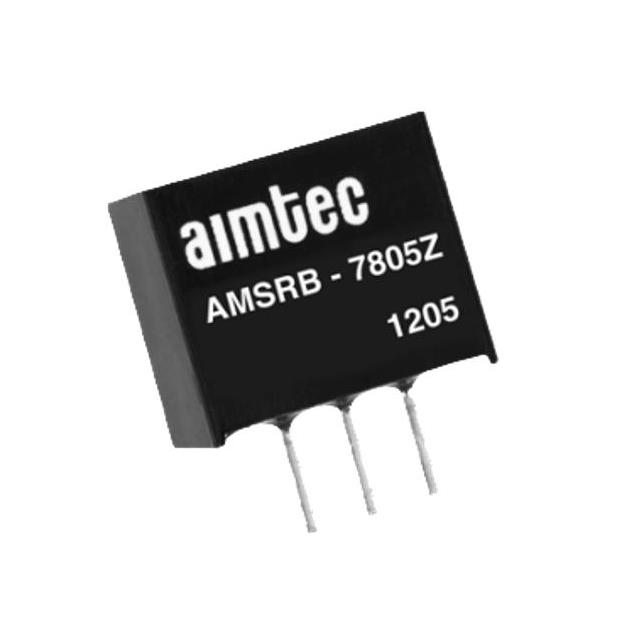

lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 6V - 36V Input
Quick Inquiry
AMSRB1-783.3JZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | aimtec |
| Series | AMSRB1-78JZ (15W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 3.3 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AMSRB |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AMSRB1-7805JZ | AMSRB1-7809JZ | AMSRB1-7812JZ | AMSRB1-7815JZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 5W | DC DC CONVERTER 9V 9W | DC DC CONVERTER 12V 12W | DC DC CONVERTER 15V 15W |
| Series | aimtec | aimtec | aimtec | aimtec |
| Packaging | Tube | Tube | Tube | Tube |
