Product CatalogPart Number
AO3409A
Manufacturer
UMWDescription
30V 2.6A 130MR@10V,2.6A 1.4W 3V@
Datasheet
DatasheetPackage
TO-236-3, SC-59, SOT-23-3
In Stock
37,998 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AO3409A
AO3409A
lmages are for reference only.Payment Methods
Delivery Services

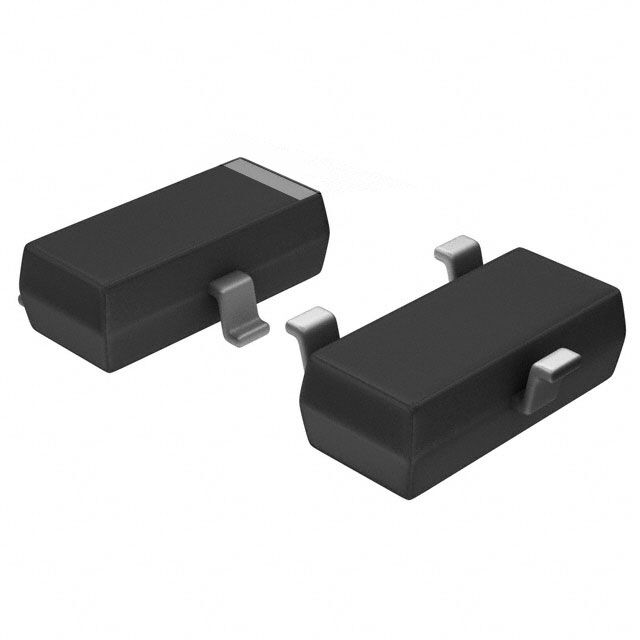

P-Channel 30 V 2.6A (Ta) 1.4W (Ta) Surface Mount SOT-23
Quick Inquiry
AO3409A
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | UMW |
| Series | Tape & Reel (TR)-->Cut Tape (CT) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 2.6A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 370 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V |
| Grade | - |
| Qualification | - |
