AOB11C60

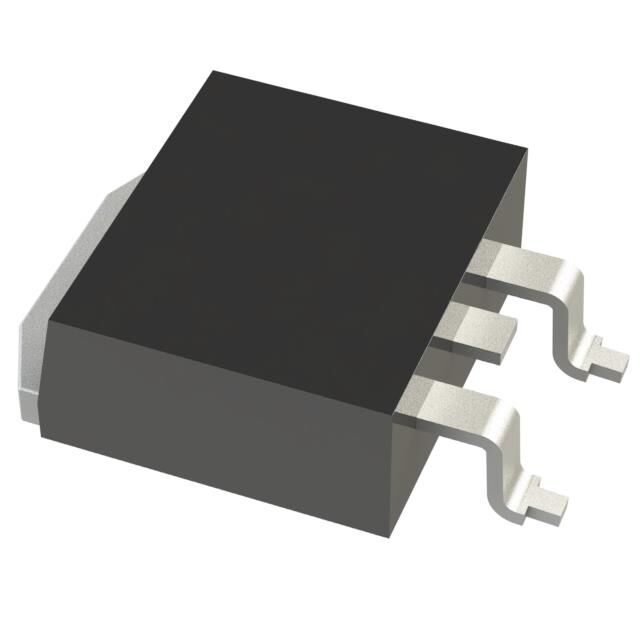

lmages are for reference only.AOB11C60
MOSFET N-CH 600V 11A TO263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
46,999 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 11A (Tc) 278W (Tc) Surface Mount TO-263 (D2PAK)
AOB11C60
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 440mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | AOB11 |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOB11C60L | AOB1100L | AOB11N60L | AOB11S60L |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 600V 11A TO263 | MOSFET N-CH 100V 8A/130A TO263 | MOSFET N-CH 600V 11A TO263 | MOSFET N-CH 600V 11A TO263 |
| Series | - | - | - | aMOS™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
