AOB262L

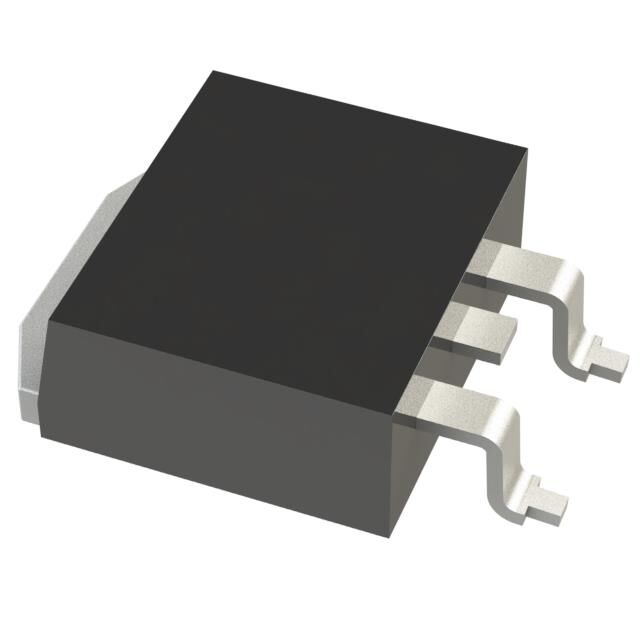

lmages are for reference only.AOB262L
MOSFET N-CH 60V 20A/140A TO263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
54,937 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 20A (Ta), 140A (Tc) 2.1W (Ta), 333W (Tc) Surface Mount TO-263 (D2PAK)
AOB262L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 140A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9800 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 333W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | AOB262 |
| Gate Charge (Qg) (Max) @ Vgs | 115 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOB20C60 | AOB20C60L | AOB20C60PL | AOB20S60L |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 600V 20A TO263 | MOSFET N-CH 600V 20A TO263 | MOSFET N-CH 600V 20A TO263 | MOSFET N-CH 600V 20A TO263 |
| Series | - | - | - | aMOS™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
