AOC1409VAUC-20.0000C

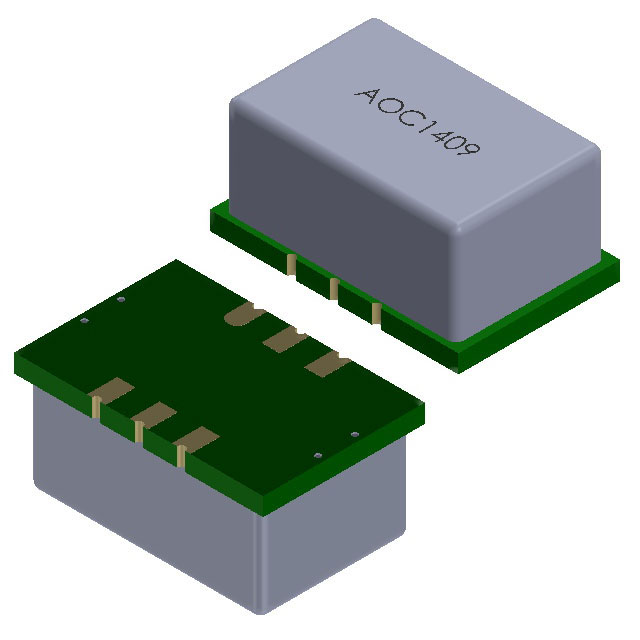

lmages are for reference only.AOC1409VAUC-20.0000C
XTAL OSC VCOCXO 20.0000MHZ CMOS
Datasheet6-SMD, No Lead
79,205 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 MHz VCOCXO CMOS Oscillator 3.3V 6-SMD, No Lead
AOC1409VAUC-20.0000C
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AOC1409 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCOCXO |
| Frequency | 20 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±10ppb |
| Absolute Pull Range (APR) | ±700ppb |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 289mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.587" L x 0.382" W (14.90mm x 9.70mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | AOC1409VAUC-20.0000T1 | AOC1409VAUC-20.0000T5 | AOC1409XAUC-20.0000C | AOC1409XAUC-20.0000T1 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCOCXO 20.0000MHZ CMOS | XTAL OSC VCOCXO 20.0000MHZ CMOS | XTAL OSC OCXO 20.0000MHZ CMOS | XTAL OSC OCXO 20.0000MHZ CMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
