AOCJY-10.000MHZ-SW

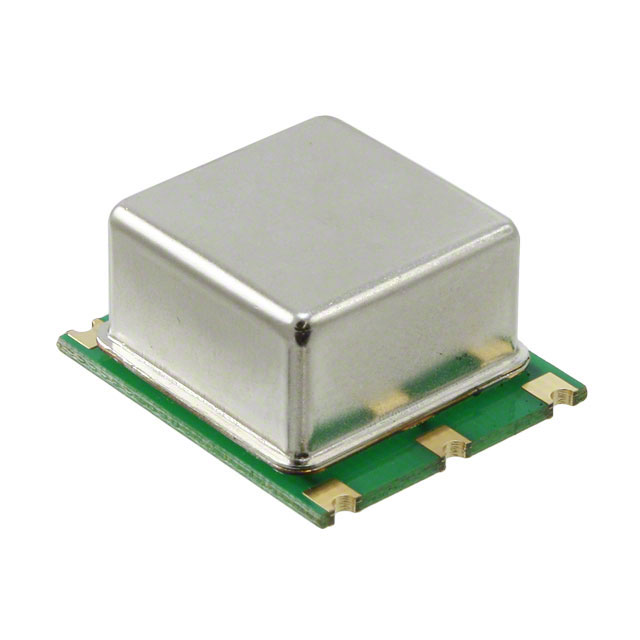

lmages are for reference only.AOCJY-10.000MHZ-SW
XTAL OSC VCOCXO 10.0000MHZ SNWV
Datasheet6-SMD, No Lead, 5 Leads
59,617 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 MHz VCOCXO Sine Wave Oscillator 3.3V Standby (Power Down) 6-SMD, No Lead, 5 Leads
AOCJY-10.000MHZ-SW
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AOCJY |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCOCXO |
| Frequency | 10 MHz |
| Function | Standby (Power Down) |
| Output | Sine Wave |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±5ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | 0°C ~ 50°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead, 5 Leads |
| Size / Dimension | 1.000" L x 0.866" W (25.40mm x 22.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOCJY-10.000MHZ | AOCJY-10.000MHZ-E-SW | AOCJY-10.000MHZ-E-T | AOCJY-10.000MHZ-F-SW |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCOCXO 10.0000MHZ CMOS | XTAL OSC VCOCXO 10.0000MHZ SNWV | XTAL OSC VCOCXO 10.0000MHZ CMOS | XTAL OSC VCOCXO 10.0000MHZ SNWV |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
