AOD510

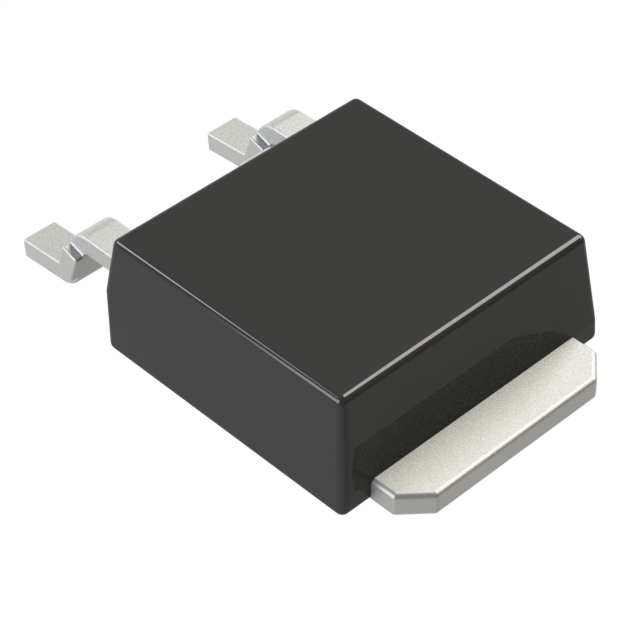

lmages are for reference only.AOD510
MOSFET N-CH 30V 45A/70A TO252
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
35,415 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 45A (Ta), 70A (Tc) 7.5W (Ta), 60W (Tc) Surface Mount TO-252 (DPAK)
AOD510
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Ta), 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2719 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 7.5W (Ta), 60W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (DPAK) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | AOD51 |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | AOD512 | AOD514 | AOD516 | AOD518 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 30V 27A/70A TO252 | MOSFET N-CH 30V 17A/46A TO252 | MOSFET N-CH 30V 18A/46A TO252 | MOSFET N-CH 30V 15A/54A TO252 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
