AOK033V120X2Q
lmages are for reference only.AOK033V120X2Q
1200V SILICON CARBIDE MOSFET
DatasheetTO-247-3
66,482 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 1200 V 68A (Tc) 300W (Ta) Through Hole TO-247
AOK033V120X2Q
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 68A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 20A, 15V |
| Vgs(th) (Max) @ Id | 2.8V @ 17.5mA |
| Vgs (Max) | +15V, -5V |
| Input Capacitance (Ciss) (Max) @ Vds | 2908 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |
| Base Product Number | AOK033 |
| Gate Charge (Qg) (Max) @ Vgs | 104 nC @ 15 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOK033V120X2 | AOK015V65X2 | AOK015V75X2Q | AOK040A60 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

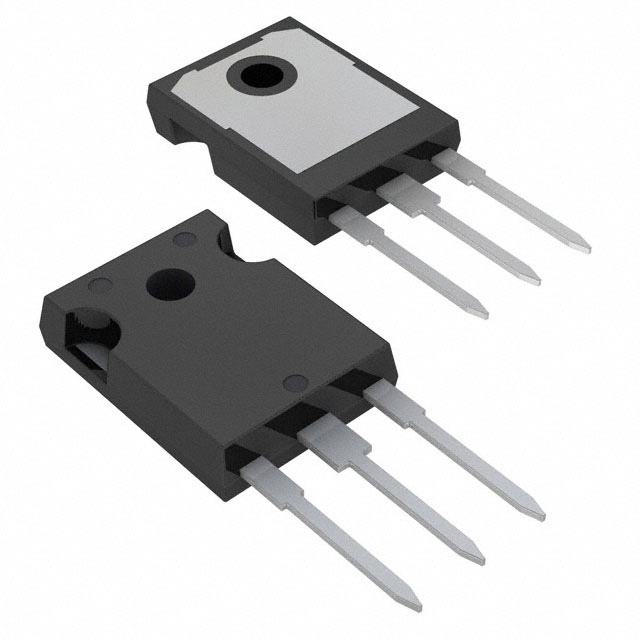

| Description | 1200V SILICON CARBIDE MOSFET | 650V SILICON CARBIDE MOSFET | 750V SILICON CARBIDE MOSFET | N |
| Series | - | - | - | aMOS5™ |
| Packaging | Tube | Tube | Tube | Tube |
