AOK20B135E1
lmages are for reference only.AOK20B135E1

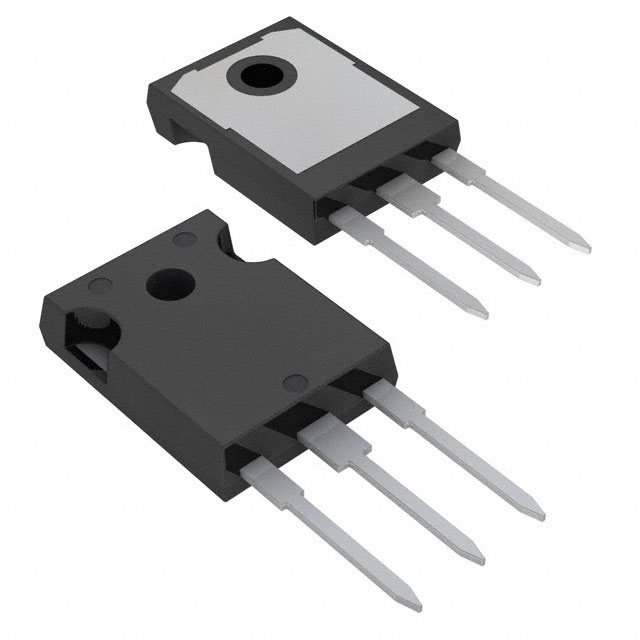

IGBT 1350V 20A 340W TO247
DatasheetTO-247-3
89,274 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 1350 V 40 A 250 W Through Hole TO-247
AOK20B135E1
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | Alpha IGBT™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1350 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 20A |
| Power - Max | 250 W |
| Switching Energy | 800µJ (off) |
| Input Type | Standard |
| Gate Charge | 58 nC |
| Td (on/off) @ 25°C | -/134ns |
| Test Condition | 600V, 20A, 15Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | - |
| Base Product Number | AOK20 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOK20B135D1 | AOK20B120D1 | AOK20B120E1 | AOK20B120E2 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 1350V 40A 340W TO-247 | IGBT 1200V 20A TO-247 | IGBT 1200V 20A TO247 | IGBT 1200V 20A TO-247 |
| Series | Alpha IGBT™ | Alpha IGBT™ | Alpha IGBT™ | Alpha IGBT™ |
| Packaging | Tube | Tube | Tube | Tube |
