AOK40B60D

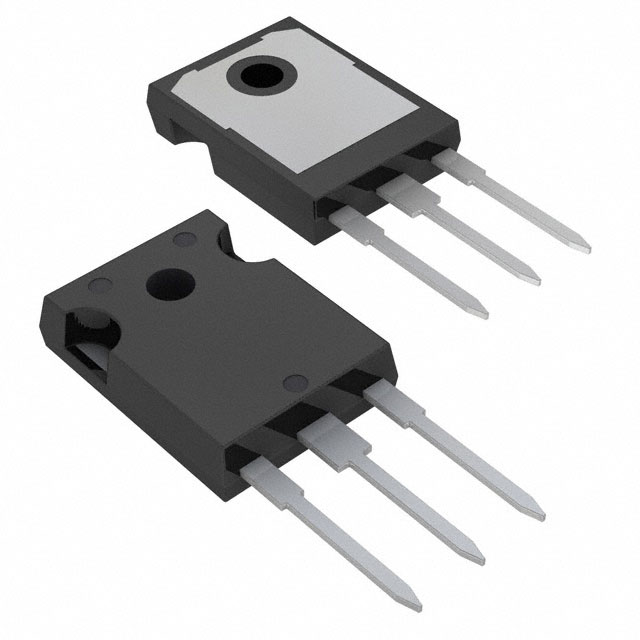

lmages are for reference only.AOK40B60D
IGBT 600V 80A 312.5W TO247
DatasheetTO-247-3
22,630 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 80 A 312.5 W Through Hole TO-247
AOK40B60D
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | Alpha IGBT™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A |
| Power - Max | 312.5 W |
| Switching Energy | 1.72mJ (on), 300µJ (off) |
| Input Type | Standard |
| Gate Charge | 63.5 nC |
| Td (on/off) @ 25°C | 28ns/77ns |
| Test Condition | 400V, 40A, 7.5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | 138 ns |
| Base Product Number | AOK40 |
| Product Attribute |  |
 |
 |
|
| Part Number | AOK40B60D1 | AOK40B120M1 | AOK40B120N1 | AOK40B120P1 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 600V 80A TO247 | IGBT 1200V 40A TO-247 | IGBT 1200V 40A TO-247 | IGBT 40A |
| Series | Alpha IGBT™ | Alpha IGBT™ | Alpha IGBT™ | AlphaIGBT™ |
| Packaging | Tube | Tube | Tube | Tube |
