AOL1440

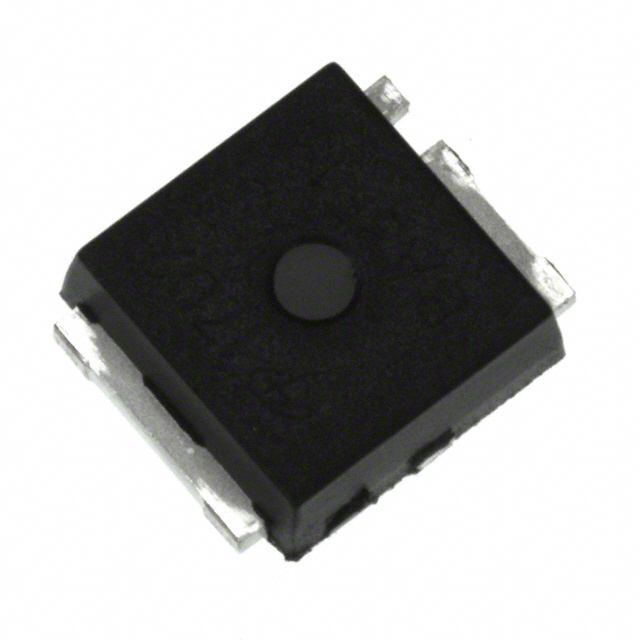

lmages are for reference only.AOL1440
MOSFET N-CH 25V 21A/85A ULTRASO8
Datasheet3-PowerSMD, Flat Leads
37,383 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 25 V 21A (Ta), 85A (Tc) 2.3W (Ta), 75W (Tc) Surface Mount UltraSO-8™
AOL1440
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 20V |
| Rds On (Max) @ Id, Vgs | 3.2mOhm @ 20A, 20V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 12.5 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 75W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | UltraSO-8™ |
| Package / Case | 3-PowerSMD, Flat Leads |
| Base Product Number | AOL14 |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOL1448 | AOL1202 | AOL1206 | AOL1208 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ||||
| Description | MOSFET N-CH 30V 11A/36A ULTRASO8 | MOSFET N-CH 30V 16A/54A ULTRASO8 | MOSFET N-CH 30V 16A/54A ULTRASO8 | MOSFET N-CH 30V 11A/50A ULTRASO8 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
