AON5802BL

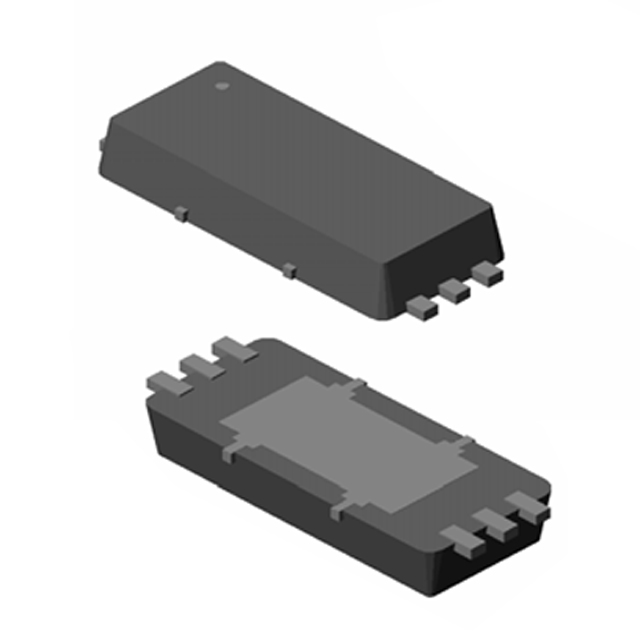

lmages are for reference only.AON5802BL
MOSFET 2N-CH 30V 7.2A 6DFN
Datasheet6-WFDFN Exposed Pad
15,797 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 7.2A (Tc) 1.6W Surface Mount 6-DFN-EP (2x5)
AON5802BL
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Common Drain |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.2A (Tc) |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150pF @ 15V |
| Power - Max | 1.6W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN-EP (2x5) |
| Base Product Number | AON5802 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | AON5802B | AON5802BG | AON5802B_101 | AON5802A |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET 2N-CH 30V 7.2A 6DFN | MOSFET 2N-CH 30V 10A 6DFN | MOSFET N-CH DUAL DFN | MOSFET 2N-CH 30V 7.2A 6DFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
