AON6220
lmages are for reference only.AON6220

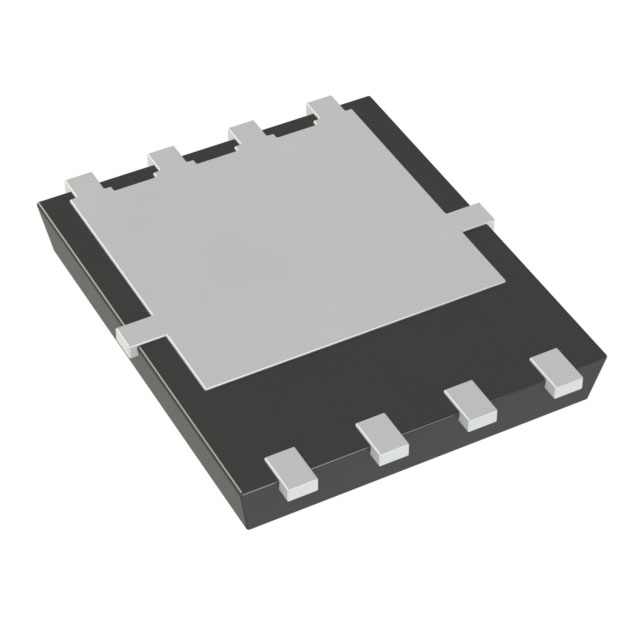

MOSFET N-CHANNEL 100V 48A 8DFN
Datasheet8-PowerSMD, Flat Leads
42,003 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 48A (Tc) 113.5W (Tc) Surface Mount 8-DFN (5x6)
AON6220
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | AlphaSGT™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4525 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 113.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Base Product Number | AON62 |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | AON6224 | AON6224A | AON6226 | AON6144 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CHANNEL 100V 34A 8DFN | N | MOSFET N-CHANNEL 100V 48A 8DFN | MOSFET N-CH 40V 100A 8DFN |
| Series | - | AlphaSGT™ | AlphaSGT™ | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
