AON6514

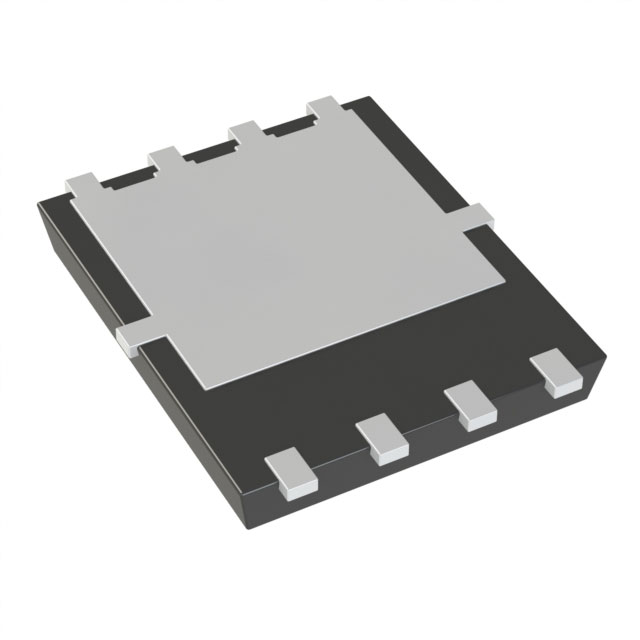

lmages are for reference only.AON6514
MOSFET N-CH 30V 23A/30A 8DFN
Datasheet8-PowerSMD, Flat Leads
46,176 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 23A (Ta), 30A (Tc) 4.1W (Ta), 25W (Tc) Surface Mount 8-DFN (5x6)
AON6514
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta), 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 951 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.1W (Ta), 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Base Product Number | AON651 |
| Gate Charge (Qg) (Max) @ Vgs | 22.5 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | AON6510 | AON6512 | AON6516 | AON6518 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 30V 28A/32A 8DFN | MOSFET N-CH 30V 54A/150A 8DFN | MOSFET N-CH 30V 27A/32A 8DFN | MOSFET N-CH 30V 48A/85A 8DFN |
| Series | - | - | - | AlphaMOS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
