AON7140

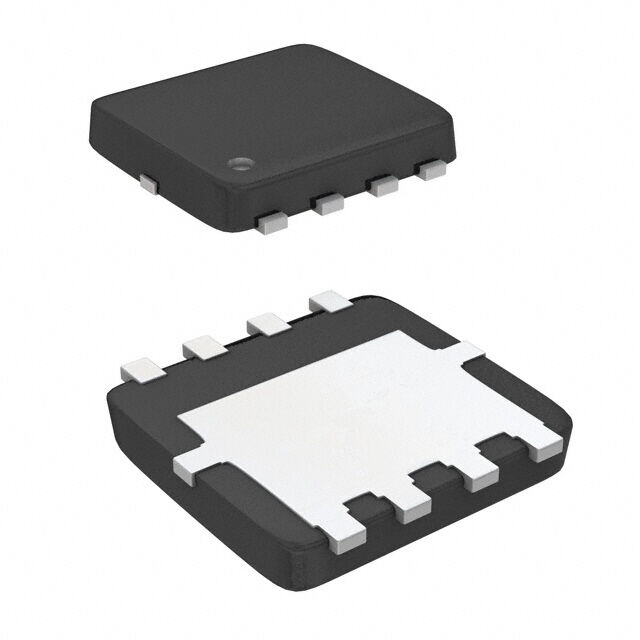

lmages are for reference only.AON7140
MOSFET N-CHANNEL 40V 50A 8DFN
Datasheet8-PowerWDFN
24,014 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 50A (Tc) 46W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)
AON7140
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3350 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 46W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN-EP (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
| Base Product Number | AON714 |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AON7200 | AON7200L | AON7202 | AON7202L |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ||||
| Description | MOSFET N-CH 30V 15.8A/40A 8DFN | MOSFET N-CH 30V 15.8A/40A 8DFN | MOSFET N-CH 30V 20A/40A 8DFN | MOSFET N-CH 30V 20A/40A 8DFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Bulk |
