AOTF296L

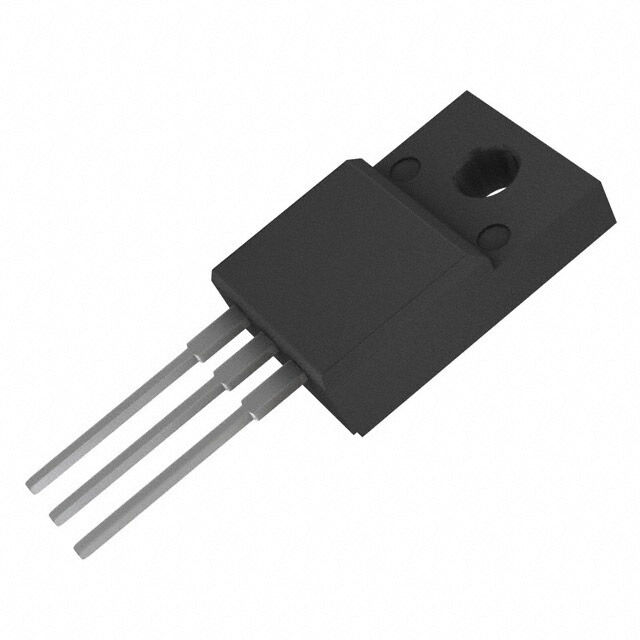

lmages are for reference only.AOTF296L
MOSFET N-CH 100V 10A/41A TO220F
DatasheetTO-220-3 Full Pack
19,092 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 10A (Ta), 41A (Tc) 2.2W (Ta), 36.5W (Tc) Through Hole TO-220F
AOTF296L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 41A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2785 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 36.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | AOTF296 |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOTF20C60 | AOTF20C60P | AOTF20C60PL | AOTF20N40L |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 600V 20A TO220-3F | MOSFET N-CH 600V 20A TO220-3F | MOSFET N-CH 600V 20A TO220-3F | MOSFET N-CH 400V 20A TO220-3F |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
