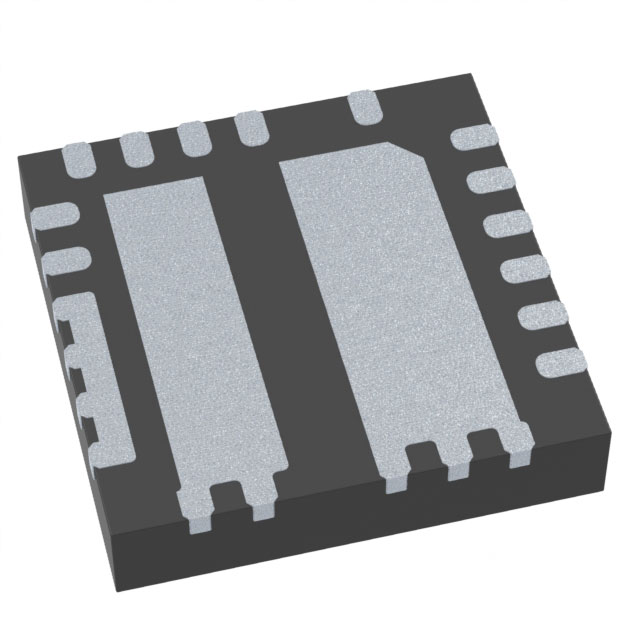

AOZ1269QI-02
lmages are for reference only.AOZ1269QI-02
IC REG BUCK ADJ 12A 23QFNB
Datasheet23-PowerTFQFN
76,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 12A 23-PowerTFQFN
AOZ1269QI-02
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | EZBuck™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 23.8V |
| Current - Output | 12A |
| Frequency - Switching | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 23-PowerTFQFN |
| Supplier Device Package | 23-QFNB (4x4) |
| Base Product Number | AOZ1269 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOZ1269QI-02_3 | AOZ1269QI-03 | AOZ1269QI-2 | AOZ1266AQI |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC REG BUCK ADJ 12A 23QFNB | IC REG BUCK ADJ 12A 23QFNB | IC REG BUCK ADJ 12A 23QFNB | IC REG BUCK ADJ 6A 22QFN |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |

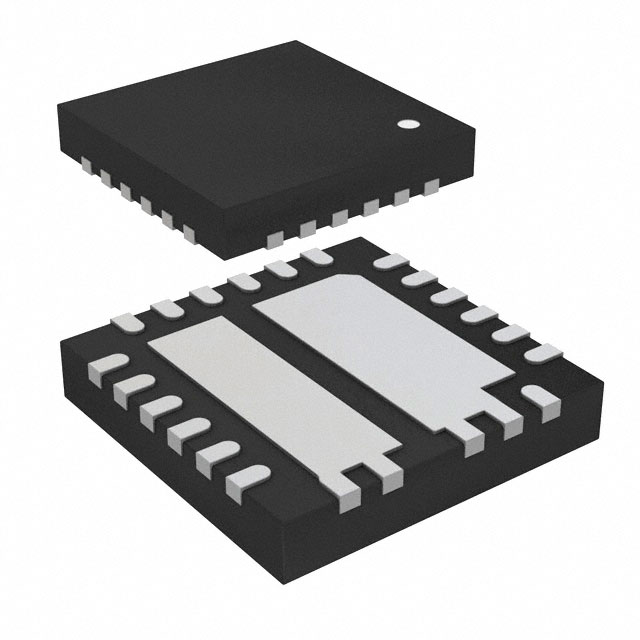

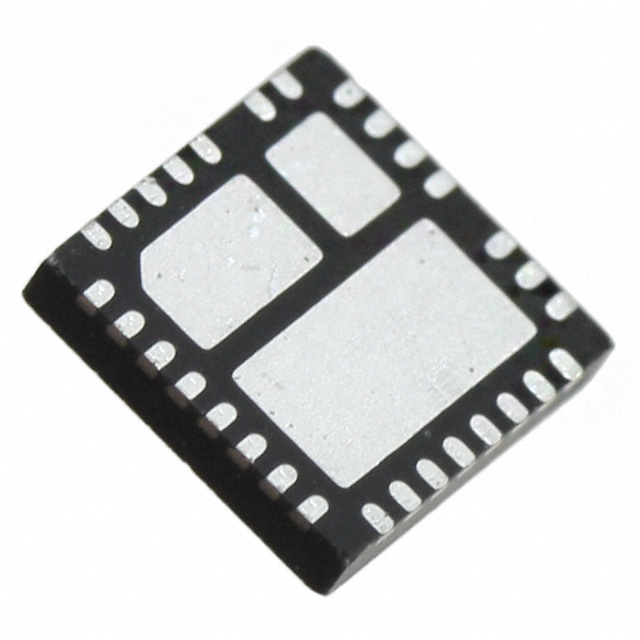

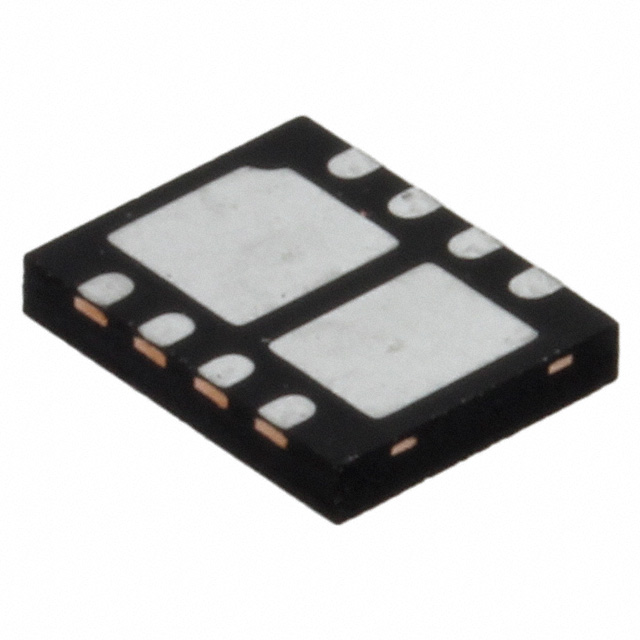

Recommended Products
