AOZ2263VQI-01
lmages are for reference only.AOZ2263VQI-01
IC REG BUCK ADJ 12A 22QFN
Datasheet22-PowerVFQFN
38,604 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 1.05V 1 Output 12A 22-PowerVFQFN
AOZ2263VQI-01
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | EZBuck™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 1.05V |
| Voltage - Output (Max) | 1.125V |
| Current - Output | 12A |
| Frequency - Switching | 600kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 22-PowerVFQFN |
| Supplier Device Package | 22-QFN (4x4) |
| Base Product Number | AOZ2263 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

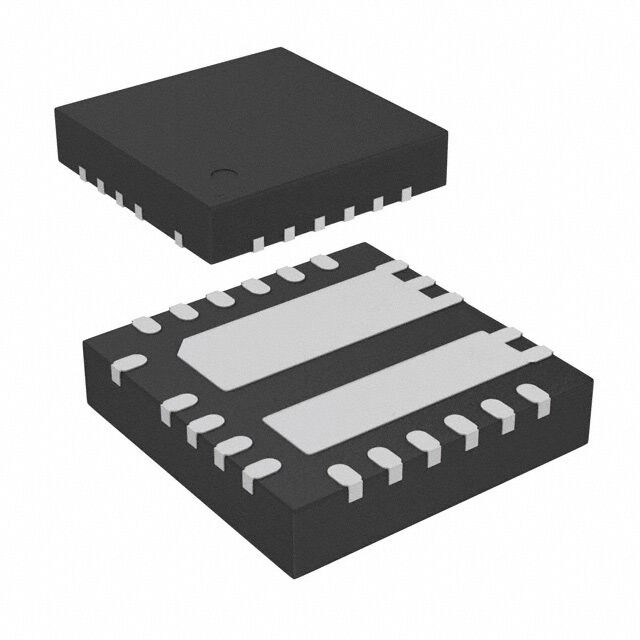

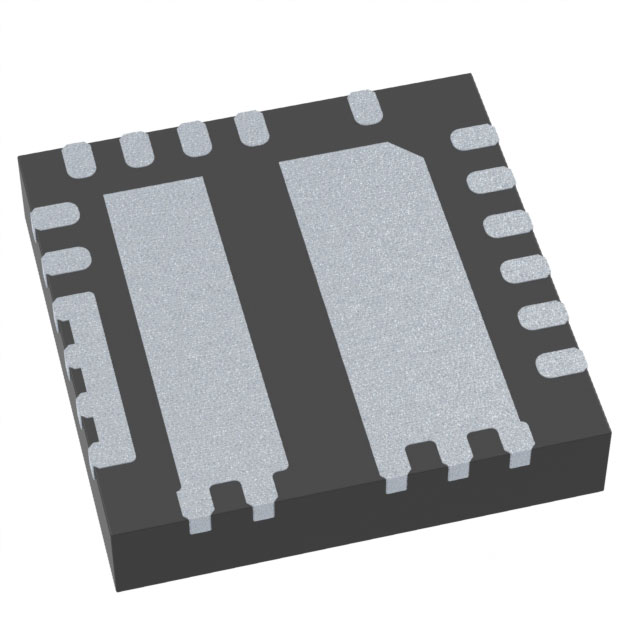

| Part Number | AOZ2263VQI-02 | AOZ2263AQI-10 | AOZ2263AQI-15 | AOZ2263AQI-18 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK PROG 12A 22QFN | IC REG BUCK ADJ 12A 22QFN | IC REG BUCK ADJ 12A 22QFN | IC REG BUCK ADJ 12A 23QFNB |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
