Product CatalogPart Number
AOZ7000
Manufacturer
Alpha & Omega Semiconductor Inc.Description
ACDC STR CORELESS PULSE TRANSFOR
Datasheet
DatasheetPackage
-
In Stock
43,862 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AOZ7000
AOZ7000
lmages are for reference only.Payment Methods
Delivery Services
50nH Isolation and Data Interface (Encapsulated) Pulse Transformer 3:10 Surface Mount
Quick Inquiry
AOZ7000
Specifications
| Category | Transformers - Pulse Transformers - |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Transformer Type | Isolation and Data Interface (Encapsulated) |
| Inductance | 50nH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 3:10 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.374" L x 0.217" W (9.50mm x 5.50mm) |
| Height - Seated (Max) | 0.078" (1.98mm) |
| Operating Temperature | - |
| Weight | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

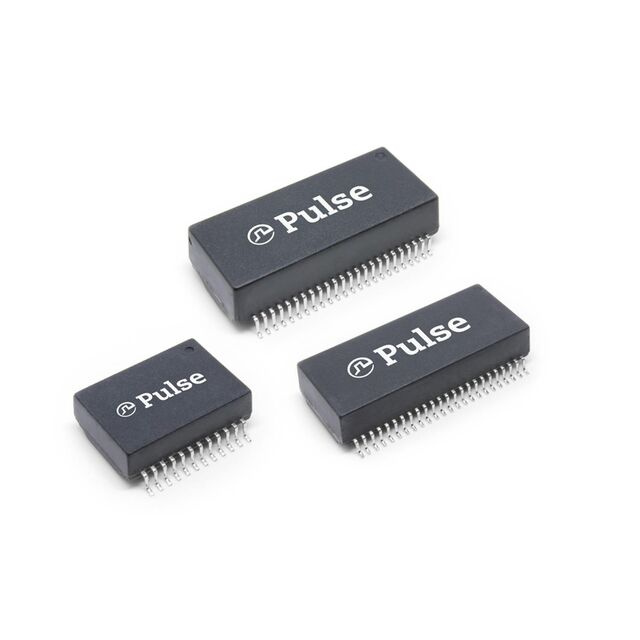

| Part Number | ALANS10001-4J41ET | AVP9014RM | ALAN110001-4J41JT | AGS6014R |
| Manufacturer | Abracon LLC | Pulse Electronics | Abracon LLC | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LAN SGL 1000B XFMR&CMC&AUTO 24PI | MDL 2.5G 1 PORT 4PAIR POE 90W | 10/100/1000BASE-T LAN XFMR POE | MDL 2.5G DUAL PORT 4PAIR POE 60W |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
