AOZ8010DT
lmages are for reference only.AOZ8010DT
FILTER RC(PI) 100 OHM/28PF SMD
Datasheet16-UFDFN Exposed Pad
94,388 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100Ohms, C = 28pF 20 mA 16-UFDFN Exposed Pad
AOZ8010DT
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | 90MHz (Cutoff) |
| Attenuation Value | -35dB @ 800MHz ~ 2.2GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | 20 mA |
| Values | R = 100Ohms, C = 28pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 5V |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.157" L x 0.063" W (4.00mm x 1.60mm) |
| Height | 0.024" (0.60mm) |
| Number of Channels | 8 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

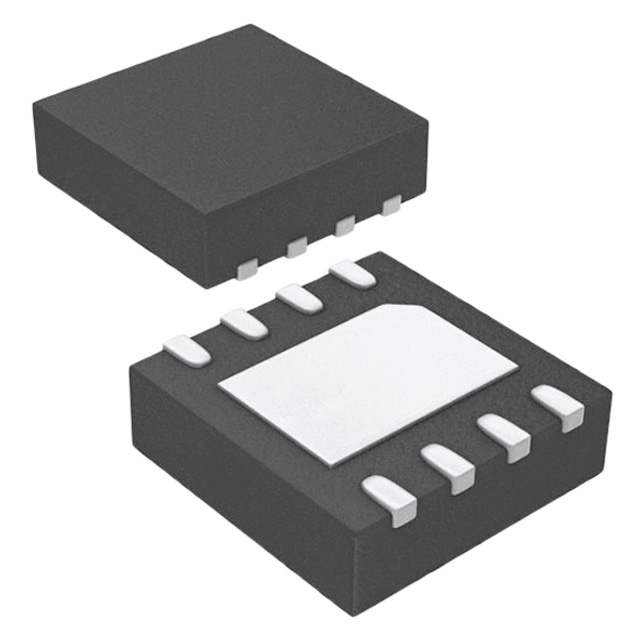

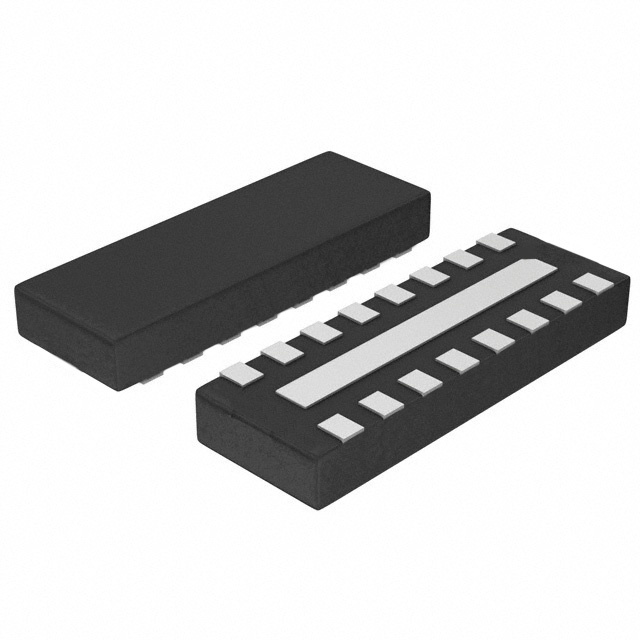

| Part Number | AOZ8010DT | AOZ8010DTL | AOZ8010DTL | AOZ8013DI |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | FILTER RC(PI) 100 OHM/28PF SMD | FILTER RC(PI) 100 OHM/28PF SMD | FILTER RC(PI) 100 OHM/28PF SMD | FILTER RC(PI) 100 OHM/28PF SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
