AOZ8211NI-05
lmages are for reference only.AOZ8211NI-05
TVS DIODE 5VWM 10VC SOD923
DatasheetSOD-923
31,510 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
AOZ8211NI-05
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 10V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 16pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
| Base Product Number | AOZ8211 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

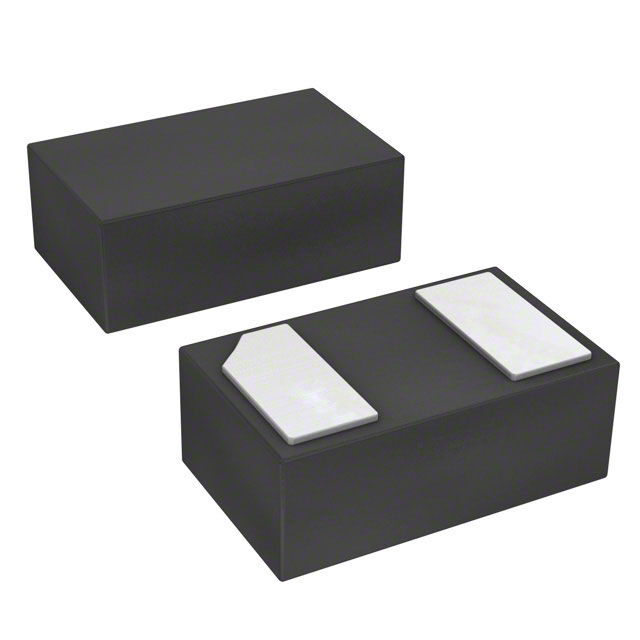

| Part Number | AOZ8211DI-02 | AOZ8211DI-03 | AOZ8211DI-05 | AOZ8211DI-12 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 2.5VWM 9.5VC 2DFN | TVS DIODE 3.3VWM 9.5VC 2DFN | TVS DIODE 5VWM 10VC 2DFN | TVS DIODE 12VWM 21VC 2DFN |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
