AOZ8829ADI-03
lmages are for reference only.AOZ8829ADI-03
TVS DIODE 3.3VWM 6VC 10DFN
Datasheet10-UFDFN
77,940 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6V Clamp 16A Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
AOZ8829ADI-03
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 6V |
| Current - Peak Pulse (10/1000µs) | 16A |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | HDMI, USB |
| Capacitance @ Frequency | 0.55pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Supplier Device Package | 10-DFN (2.5x1) |
| Base Product Number | AOZ8829 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

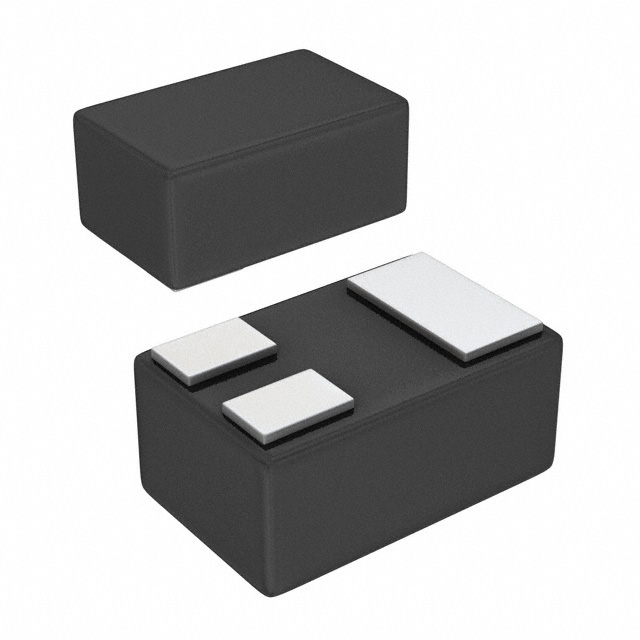

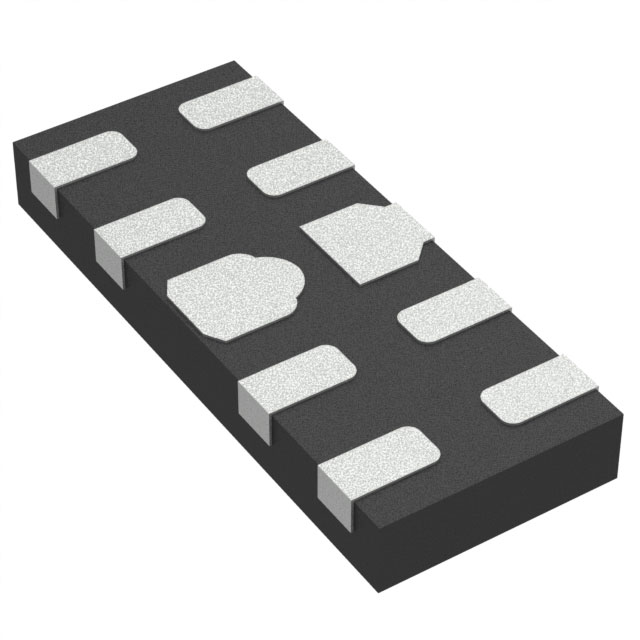

| Part Number | AOZ8829ADI-05 | AOZ8829DI-03 | AOZ8829DI-05 | AOZ8000CI |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3.3VWM 6VC 10DFN | TVS DIODE 3.3VWM 3VC 3DFN | TVS DIODE 5VWM 3VC 3DFN | TVS DIODE 5VWM 15VC SOT23-6 |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
