AOZ8S303BLS-05

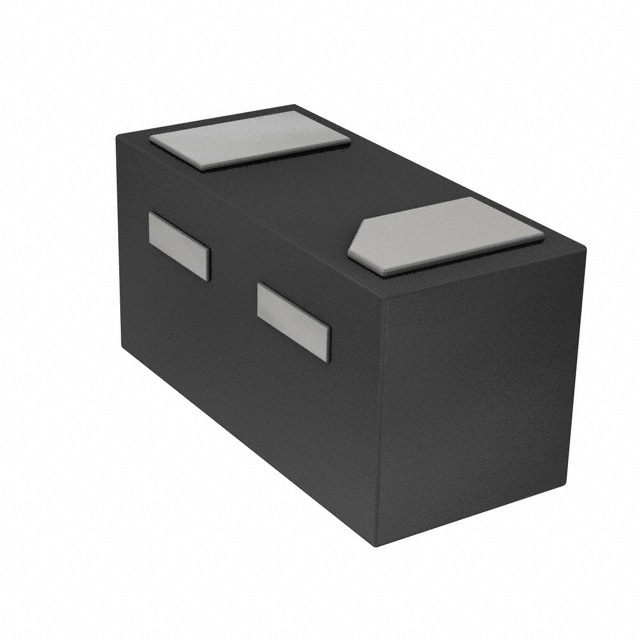

lmages are for reference only.AOZ8S303BLS-05
TVS DIODE 5VWM 6.5VC 2-WLCSP
Datasheet0201 (0603 Metric)
62,519 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.5V (Typ) Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount 2-WLCSP (0.6x0.3)
AOZ8S303BLS-05
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 6.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 9A (8/20µs) |
| Power - Peak Pulse | 70W |
| Power Line Protection | No |
| Applications | USB |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 2-WLCSP (0.6x0.3) |
| Base Product Number | AOZ8S303 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOZ8S303BLS-11 | AOZ8S303BLS-24 | AOZ8000CI | AOZ8000CIL |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1CH 11V 0.2PF BIDIRECTIONAL TVS | 1CH 24V 0.2PF BIDIRECTIONAL TVS | TVS DIODE 5VWM 15VC SOT23-6 | TVS DIODE 5VWM 15VC SOT23-6 |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
