AP1084D15L-13

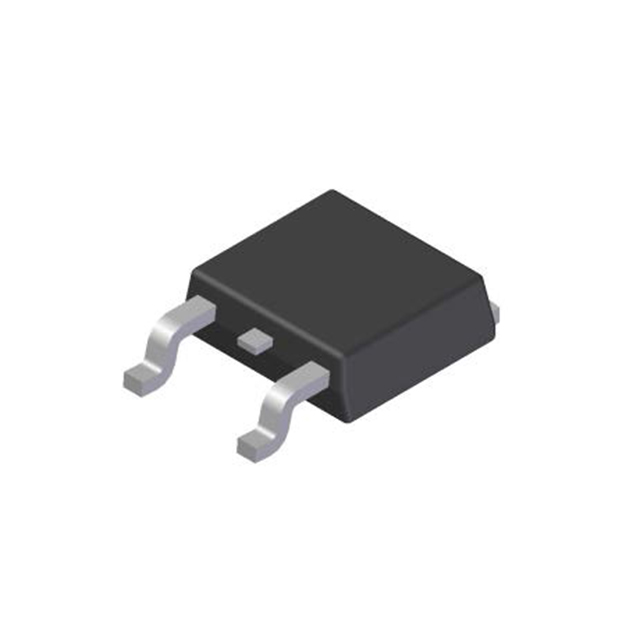

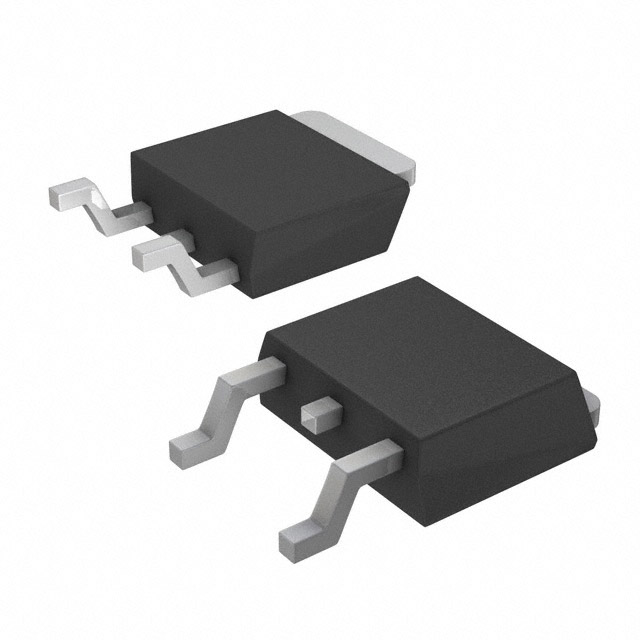

lmages are for reference only.AP1084D15L-13
IC REG LINEAR 1.5V 5A TO252-3
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
82,008 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 5A TO-252-3
AP1084D15L-13
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.4V @ 5A |
| Current - Output | 5A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Base Product Number | AP1084 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AP1084D15L-U | AP1084D15G-13Alternate Purchasing Options | AP1084D18G-13Alternate Purchasing Options | AP1084D18L-13Alternate Purchasing Options |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.5V 5A TO252-3 | IC REG LINEAR 1.5V 5A TO252-3 | IC REG LINEAR 1.8V 5A TO252-3 | IC REG LINEAR 1.8V 5A TO252-3 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
