AP130-28RG-7

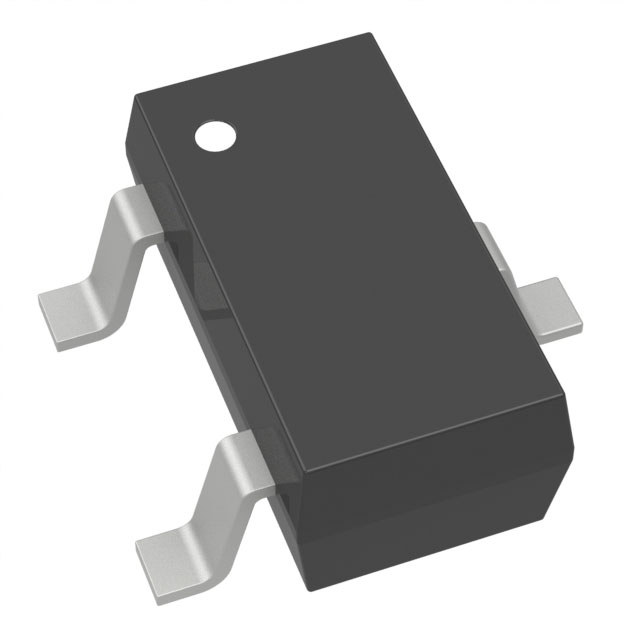

lmages are for reference only.AP130-28RG-7
IC REG LINEAR 2.8V 300MA SC59R
DatasheetTO-236-3, SC-59, SOT-23-3
61,156 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SC-59R
AP130-28RG-7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 100 µA |
| PSRR | 58dB (100Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59R |
| Base Product Number | AP130 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AP130-28RL-7 | AP130-15RG-7 | AP130-15RL-7 | AP130-15SAG-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2.8V 300MA SC59 | IC REG LINEAR 1.5V 300MA SC59R | IC REG LINEAR 1.5V 300MA SC59 | IC REG LINEAR 1.5V 300MA SOT23-3 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
