AP2014SG-13

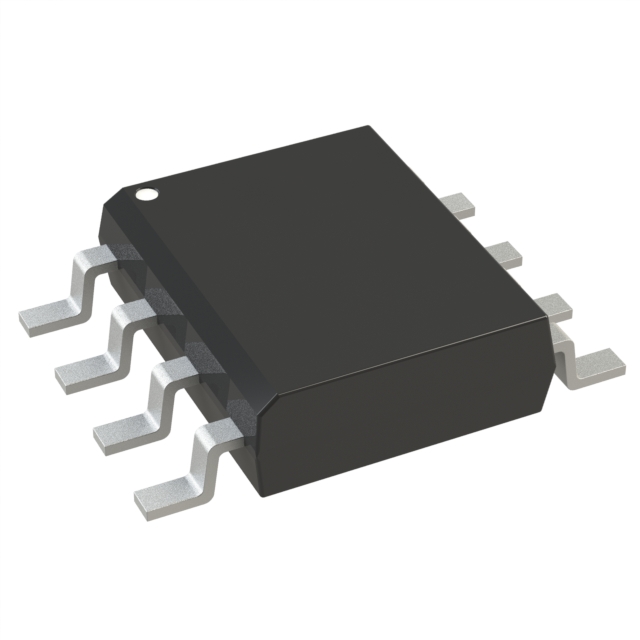

lmages are for reference only.AP2014SG-13
IC REG CTRLR BUCK SOP-8L
Datasheet8-SOIC (0.154", 3.90mm Width)
56,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-SOP
AP2014SG-13
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5V, 12V |
| Frequency - Switching | 200kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Soft Start |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | AP2014 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AP2011SL-13 | AP2014ASG-13 | AP2014ASL-13 | AP2014SL-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BUCK 14SOIC | IC REG CTRLR BUCK SOP-8L | IC REG CTRLR BUCK 8SOIC | IC REG CTRLR BUCK 8SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Cut Tape (CT) | Cut Tape (CT) |
