AP432ARG-7
lmages are for reference only.AP432ARG-7
IC VREF SHUNT ADJ 0.5% SC59R
DatasheetTO-236-3, SC-59, SOT-23-3
43,385 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Shunt Voltage Reference IC Adjustable 1.24V 20 VV ±0.5% 200 mA SC-59R
AP432ARG-7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Reference |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Current - Output | 200 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | 30ppm/°C |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59R |
| Base Product Number | AP432 |
| Voltage - Output (Max) | 20 V |
| Current - Cathode | 300 µA |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

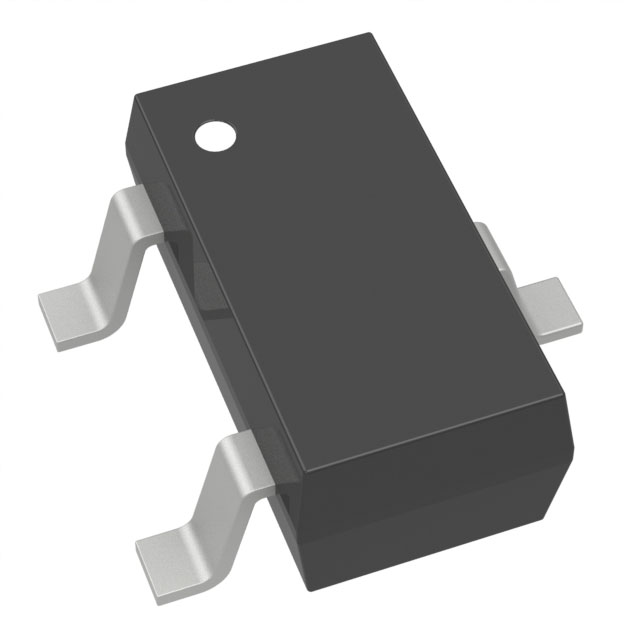

| Part Number | AP432ARL-7 | AP431AG-13 | AP431AQG-7 | AP431ARG-7Alternate Purchasing Options |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC VREF SHUNT ADJ 0.5% SC59R | IC VREF SHUNT ADJ 0.5% 8SO | IC VREF SHUNT ADJ 0.5% SOT25 | IC VREF SHUNT ADJ 0.5% SC59R |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
