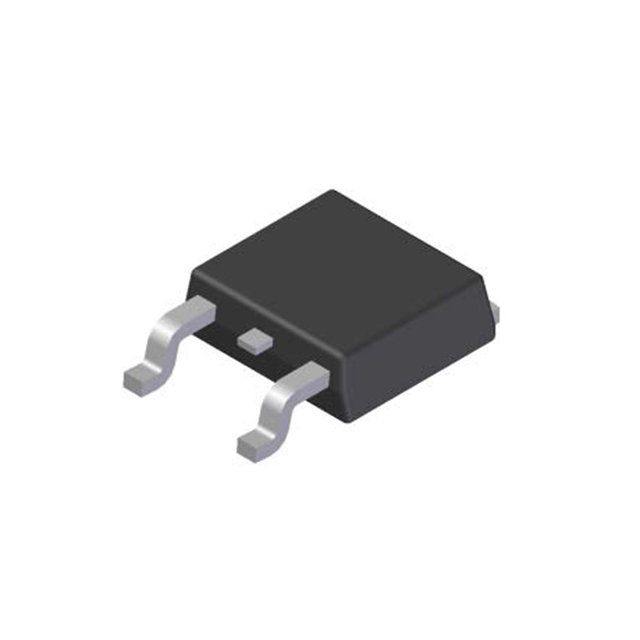

AP7361-10D-13
lmages are for reference only.AP7361-10D-13
IC REG LINEAR 1V 1A TO252
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
43,090 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-3
AP7361-10D-13
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 90 µA |
| PSRR | 65dB ~ 45dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Base Product Number | AP7361 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

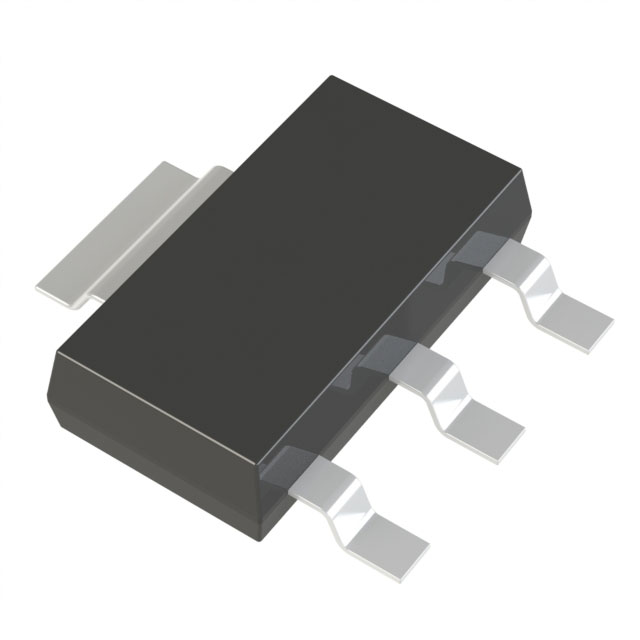

| Part Number | AP7361-10E-13 | AP7361-10ER-13 | AP7361-10FGE-7 | AP7361-12D-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1V 1A SOT223 | IC REG LINEAR 1V 1A SOT223R | IC REG LINEAR 1V 1A 8UDFN | IC REG LINEAR 1.2V 1A TO252 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
