Product CatalogPart Number
APBL3025SYKCGKC-F01
Manufacturer
KingbrightDescription
LED GRN/YLW CLEAR 4SMD
Datasheet
DatasheetPackage
1210 (3225 Metric)
In Stock
68,077 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APBL3025SYKCGKC-F01
APBL3025SYKCGKC-F01
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow 1210 (3225 Metric)
Quick Inquiry
APBL3025SYKCGKC-F01
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 120mcd Green, 150mcd Yellow |
| Lens Style | Rectangle with Irregular Top |
| Lens Size | 2.50mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 100° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 590nm Yellow |
| Wavelength - Peak | 574nm Green, 590nm Yellow |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.60mm |
| Base Product Number | APBL3025 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

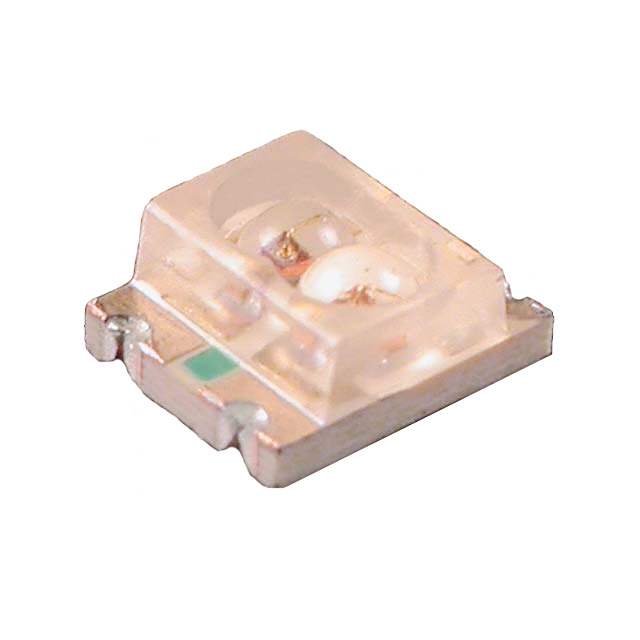

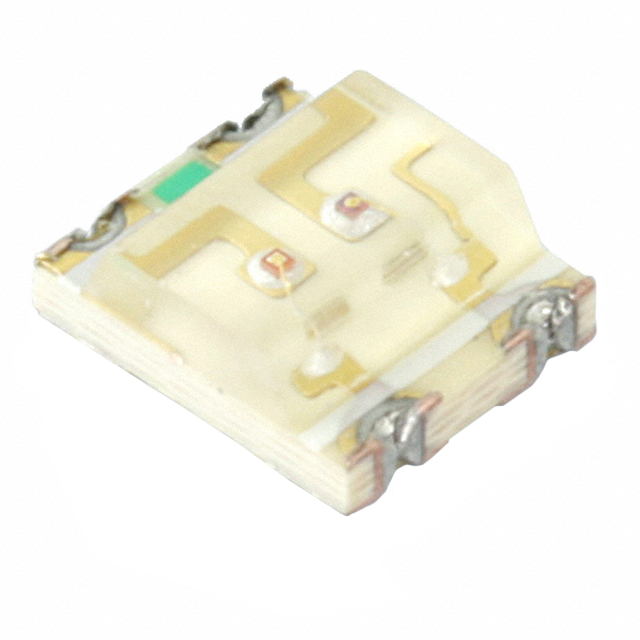

| Part Number | APBL3025SURKCGK-F01 | APBL3025ESGC-F01 | APBL3025EYC-F01 | APBL3025NSGC-F01 |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR SMD | LED GREEN/RED CLEAR SMD | LED RED/YLW CLEAR SMD | LED GREEN/ORANGE CLEAR SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
