Product CatalogPart Number
APBVA3010YSGC
Manufacturer
KingbrightDescription
LED GRN/YLW CLR CHIP SMD R/A
Datasheet
DatasheetPackage
3-SMD, No Lead
In Stock
69,000 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APBVA3010YSGC
APBVA3010YSGC
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 3-SMD, No Lead
Quick Inquiry
APBVA3010YSGC
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 15mcd Green, 6mcd Yellow |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 568nm Green, 588nm Yellow |
| Wavelength - Peak | 565nm Green, 590nm Yellow |
| Features | - |
| Package / Case | 3-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.00mm |
| Base Product Number | APBVA3010 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

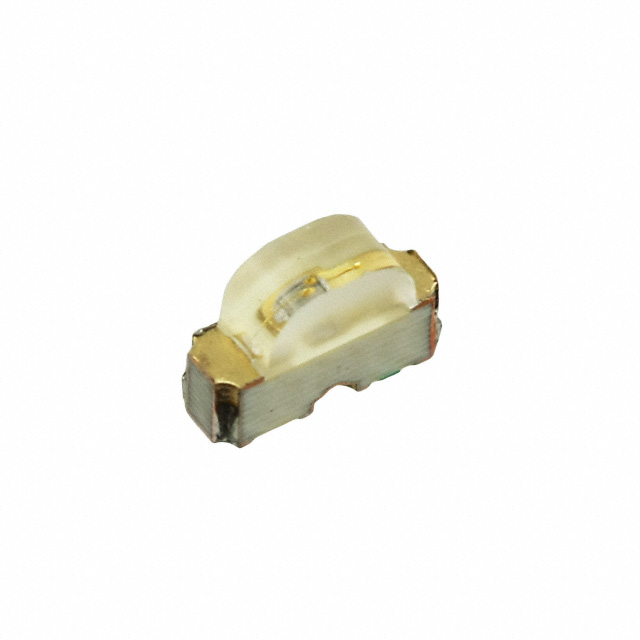

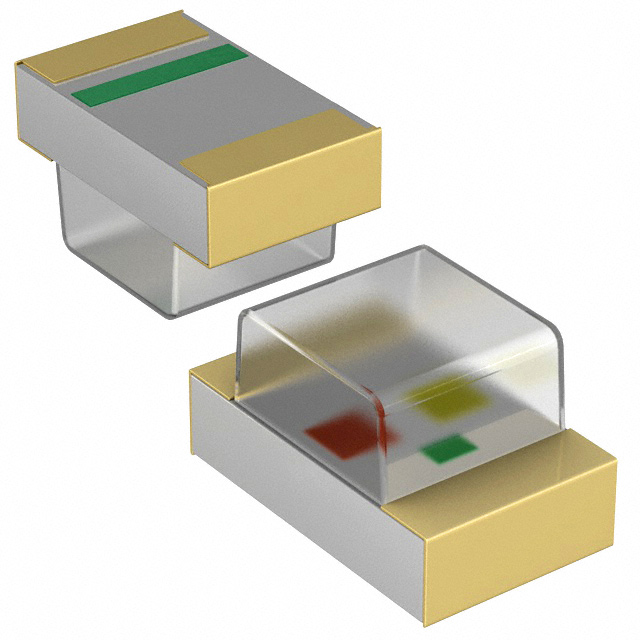

| Part Number | APBVA3010EYC | APBVA3010SURKCGKC | APBVA3010SYKCGKC | APB2012CGKSEKC |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED/YLW CLR CHIP SMD R/A | LED GREEN/RED CLR CHIP SMD R/A | LED GRN/YLW CLR CHIP SMD R/A | LED GREEN/ORANGE CLR CHIP SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
