Product CatalogPart Number
APF3236SEEZGKQBKC
Manufacturer
KingbrightDescription
LED RGB CLEAR 6SMD
Datasheet
DatasheetPackage
6-SMD, No Lead
In Stock
34,978 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APF3236SEEZGKQBKC
APF3236SEEZGKQBKC

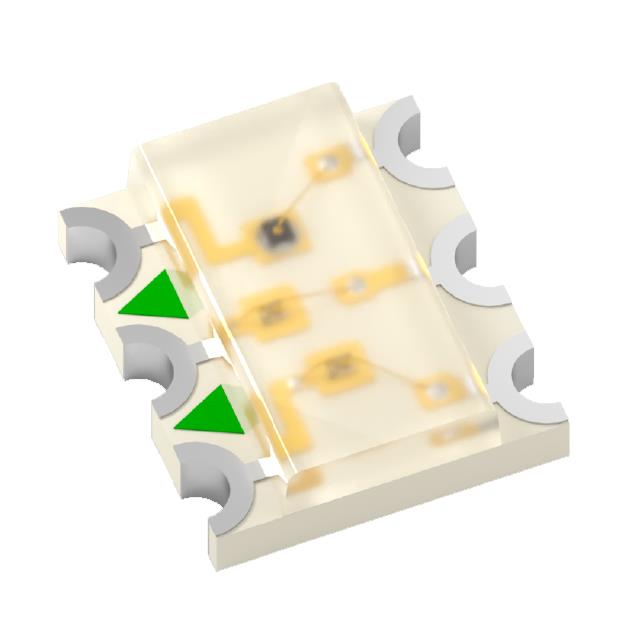

lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 6-SMD, No Lead
Quick Inquiry
APF3236SEEZGKQBKC
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | HELI Colour |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 140mcd Red, 330mcd Green, 70mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.60mm x 1.90mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 3.60mm L x 3.20mm W |
| Height (Max) | 1.30mm |
| Base Product Number | APF3236 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | APF3236SEEZGQBDC | APF3236LSEEZGKQBKC | APF3236LSEKJ3ZGKQBKC | APF3236SEKJ3ZGKQBKC |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CLEAR SMD | LED RGB CLEAR 6SMD | LED RGB CLEAR 6SMD | LED RGB CLEAR 6SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
