Product CatalogPart Number
APGF0606SEEKSYKXC-TT
Manufacturer
KingbrightDescription
LED RED/YLW CLEAR 4SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
50,189 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APGF0606SEEKSYKXC-TT
APGF0606SEEKSYKXC-TT
lmages are for reference only.Payment Methods
Delivery Services
Red, Yellow 624nm Red, 589nm Yellow LED Indication - Discrete 1.95V Red, 1.97V Yellow 4-SMD, No Lead
Quick Inquiry
APGF0606SEEKSYKXC-TT
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 80mcd Red, 17mcd Yellow |
| Lens Style | Square with Flat Top |
| Lens Size | 0.65mm |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 1.97V Yellow |
| Current - Test | 5mA Red, 5mA Yellow |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 589nm Yellow |
| Wavelength - Peak | 632nm Red, 591nm Yellow |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 0.65mm L x 0.65mm W |
| Height (Max) | 0.25mm |
| Base Product Number | APGF0606S |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

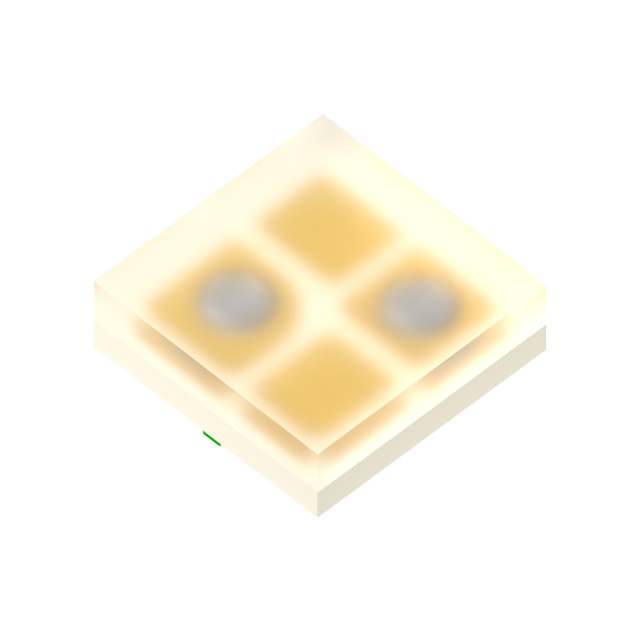

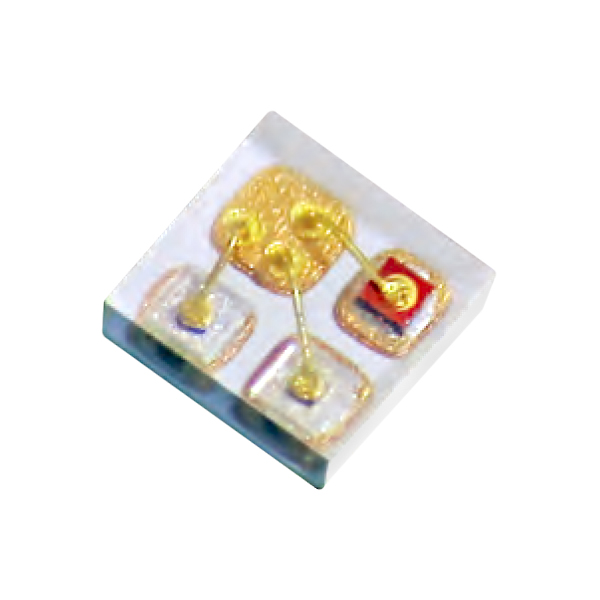

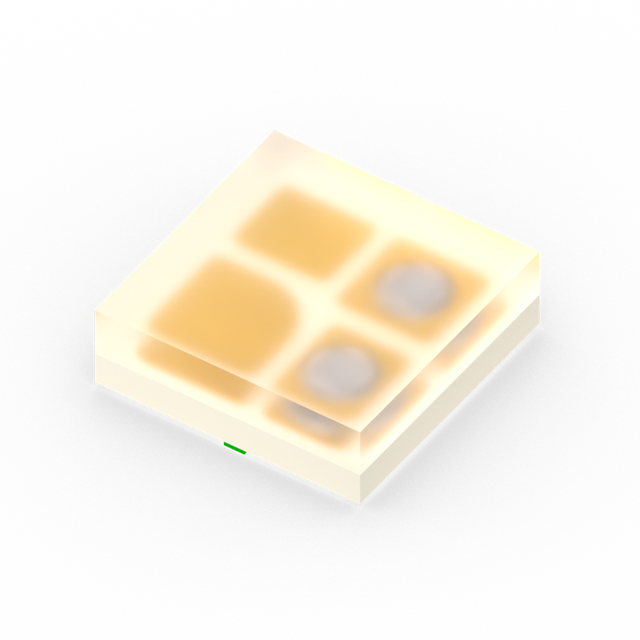

| Part Number | APGF0606SEEKCGKCTTC2 | APGF0606SEEKCGKXC-TT | APGF0606SYKCGK-TT-C2 | APGF0606VGTPBTSEETC |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 4SMD | LED GREEN/RED CLEAR 4SMD | LED GRN/YLW CLEAR 4SMD | LED RGB CLEAR 4SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
