Product CatalogPart Number
APT102GA60B2
Manufacturer
Microchip TechnologyDescription
IGBT 600V 183A 780W TO247
Datasheet
DatasheetPackage
TO-247-3 Variant
In Stock
31,925 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

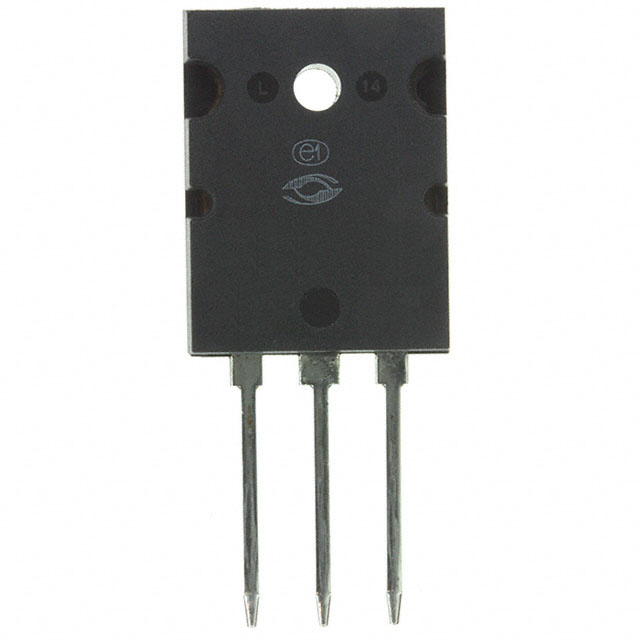

APT102GA60B2
APT102GA60B2
lmages are for reference only.Payment Methods
Delivery Services
IGBT PT 600 V 183 A 780 W Through Hole
Quick Inquiry
APT102GA60B2
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Microchip Technology |
| Series | POWER MOS 8™ |
| Packaging | Tube |
| RoHS Status | |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 183 A |
| Current - Collector Pulsed (Icm) | 307 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 62A |
| Power - Max | 780 W |
| Switching Energy | 1.354mJ (on), 1.614mJ (off) |
| Input Type | Standard |
| Gate Charge | 294 nC |
| Td (on/off) @ 25°C | 28ns/212ns |
| Test Condition | 400V, 62A, 4.7Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | - |
| Reverse Recovery Time (trr) | - |
| Base Product Number | APT102 |
