APT1211A

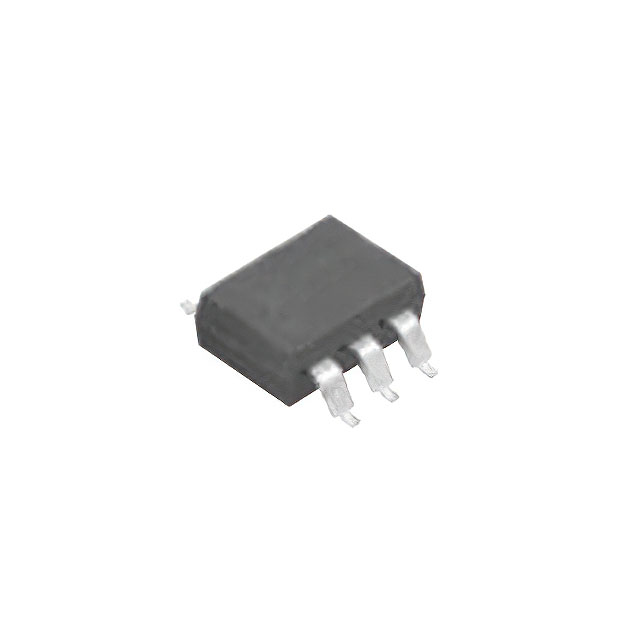

lmages are for reference only.APT1211A
OPTOISOLATOR 5KV TRIAC 4SMD
Datasheet4-SMD, Gull Wing
40,855 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel 4-DIP Gull Wing
APT1211A
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Panasonic Electric Works |
| Series | APT |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.21V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-DIP Gull Wing |
| Approval Agency | cUR, VDE |
| Base Product Number | APT1211 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Product Attribute |  |
 |
 |
 |

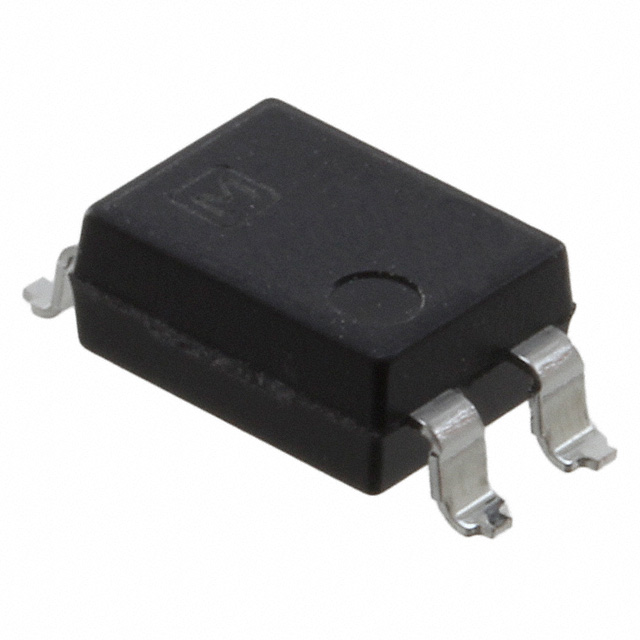

| Part Number | APT1211 | APT1211AX | APT1211AZ | APT1211S |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | OPTOISOLATOR 5KV TRIAC 4DIP | OPTOISOLATOR 5KV TRIAC 4DIP | OPTOISOLATOR 5KV TRIAC 4DIP | OPTOISOLATOR 3.75KV TRIAC 4SOP |
| Series | APT | APT | APT | APT |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tube |
