APT2X31DQ120J

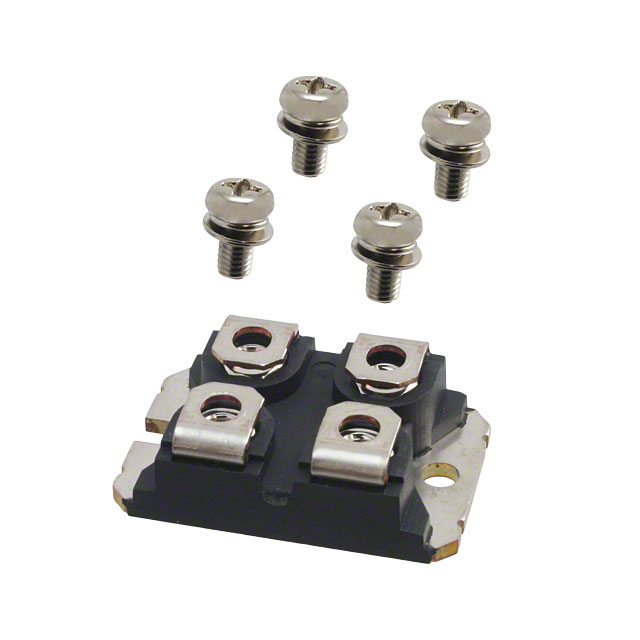

lmages are for reference only.APT2X31DQ120J
DIODE MODULE GP 1200V 30A ISOTOP
DatasheetSOT-227-4, miniBLOC
79,686 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 2 Independent 1200 V 30A Chassis Mount SOT-227-4, miniBLOC
APT2X31DQ120J
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 2 Independent |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 3.1 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Operating Temperature - Junction | - |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | ISOTOP® |
| Base Product Number | APT2X31 |
| Reverse Recovery Time (trr) | 300 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | APT2X31D100J | APT2X31D120J | APT2X31D20J | APT2X31D30J |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MODULE GP 1000V 28A ISOTOP | DIODE MODULE GP 1200V 30A ISOTOP | DIODE MODULE GP 200V 30A ISOTOP | DIODE MODULE GP 300V 30A ISOTOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
