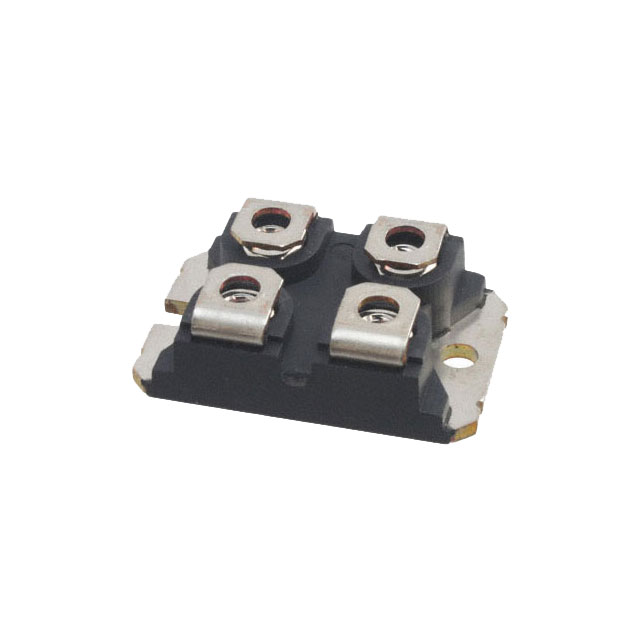

APT2X40DC60J
lmages are for reference only.APT2X40DC60J
DIODE MOD SIC 600V 40A SOT-227
DatasheetSOT-227-4, miniBLOC
95,442 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 2 Independent 600 V 40A Chassis Mount SOT-227-4, miniBLOC
APT2X40DC60J
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Diode Configuration | 2 Independent |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 40 A |
| Speed | No Recovery Time > 500mA (Io) |
| Current - Reverse Leakage @ Vr | 800 µA @ 600 V |
| Operating Temperature - Junction | - |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
| Base Product Number | APT2X40 |
| Reverse Recovery Time (trr) | 0 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | APT2X41DC120J | APT2X41DC60J | APT30D20BCTG | APT2X61D60J |
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MOD SIC 1200V 40A SOT-227 | DIODE MOD SIC 600V 40A SOT-227 | DIODE ARRAY GP 200V 30A TO247 | DIODE MODULE GP 600V 60A ISOTOP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tube | Tube |
