APT30GP60LDLG

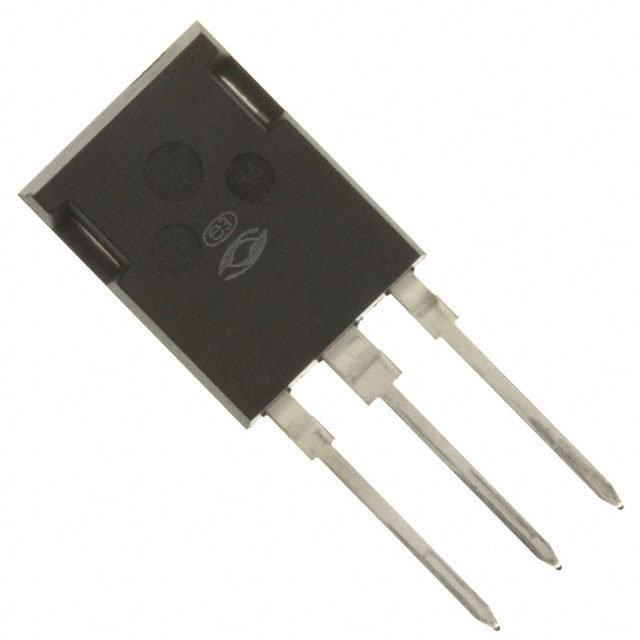

lmages are for reference only.APT30GP60LDLG
IGBT PT 600V 100A TO264
DatasheetTO-264-3, TO-264AA
28,195 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT PT 600 V 100 A 463 W Through Hole TO-264
APT30GP60LDLG
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 100 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 30A |
| Power - Max | 463 W |
| Switching Energy | 260µJ (on), 250µJ (off) |
| Input Type | Standard |
| Gate Charge | 90 nC |
| Td (on/off) @ 25°C | 13ns/55ns |
| Test Condition | 400V, 30A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 |
| Reverse Recovery Time (trr) | - |
| Base Product Number | APT30GP60 |
| Product Attribute |  |
|
 |
 |
| Part Number | APT30GP60B2DLG | APT30GP60BDQ1G | APT30GP60BG | APT100GN120B2G |
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT PT 600V 100A TMAX | IGBT PT 600V 100A TO247 | IGBT PT 600V 100A TO247 | IGBT TRENCH FIELD STP 1200V 245A |
| Series | - | POWER MOS 7® | POWER MOS 7® | - |
| Packaging | Tube | Tube | Tube | Tube |
