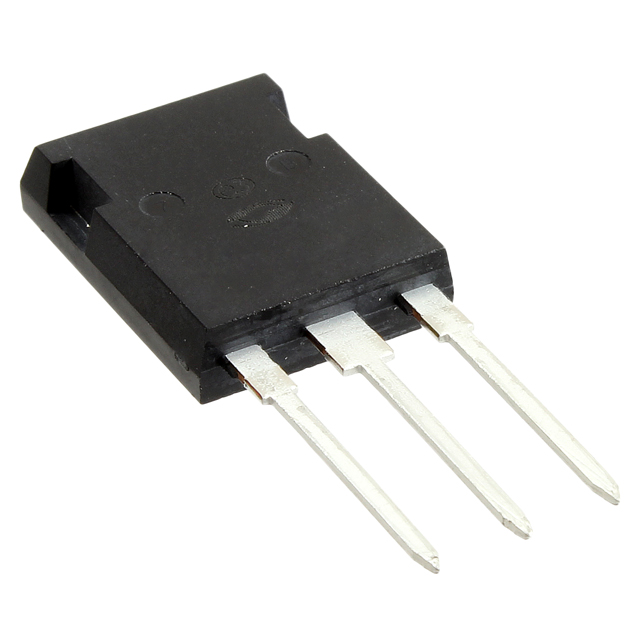

IGBT NPT 650 V 118 A 543 W Through Hole TO-247
APT45GR65BSCD10
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 118 A |
| Current - Collector Pulsed (Icm) | 224 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 45A |
| Power - Max | 543 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 203 nC |
| Td (on/off) @ 25°C | 15ns/100ns |
| Test Condition | 433V, 45A, 4.3Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | 80 ns |
| Base Product Number | APT45GR65 |
| Product Attribute |  |
|
|
 |
| Part Number | APT45GR65B | APT45GR65SSCD10 | APT45GP120B2DQ2G | APT45GP120BG |
| Manufacturer | Microchip Technology | Microsemi Corporation | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT NPT 650V 92A TO247 | INSULATED GATE BIPOLAR TRANSISTO | IGBT PT 1200V 113A | IGBT PT 1200V 100A TO247 |
| Series | - | - | POWER MOS 7® | POWER MOS 7® |
| Packaging | Tube | Bulk | Tube | Tube |
