APT5020SVFRG

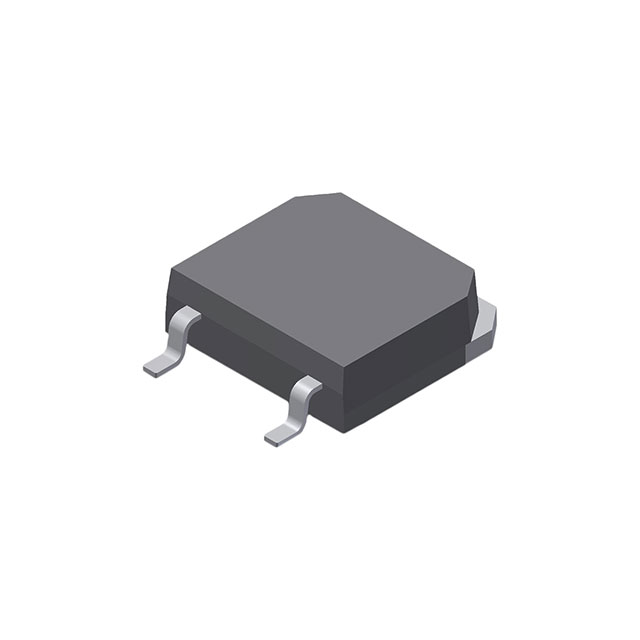

lmages are for reference only.APT5020SVFRG
MOSFET N-CH 500V 26A D3PAK
DatasheetTO-268-3, D3PAK (2 Leads + Tab), TO-268AA
91,078 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 500 V 26A (Tc) Surface Mount D3PAK
APT5020SVFRG
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microchip Technology |
| Series | POWER MOS V® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 4440 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | D3PAK |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Base Product Number | APT5020 |
| Gate Charge (Qg) (Max) @ Vgs | 225 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | APT5020SVFRG/TR | APT5020SVRG | APT5020BN | APT5020BNFR |
| Manufacturer | Microchip Technology | Microsemi Corporation | Microchip Technology | Microchip Technology |
| RoHS Status | ||||
| Description | MOSFET N-CH 500V 26A D3PAK | MOSFET N-CH 500V 26A D3PAK | MOSFET N-CH 500V 28A TO247AD | MOSFET N-CH 500V 28A TO247AD |
| Series | POWER MOS V® | POWER MOS V® | POWER MOS IV® | POWER MOS IV® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tube |
