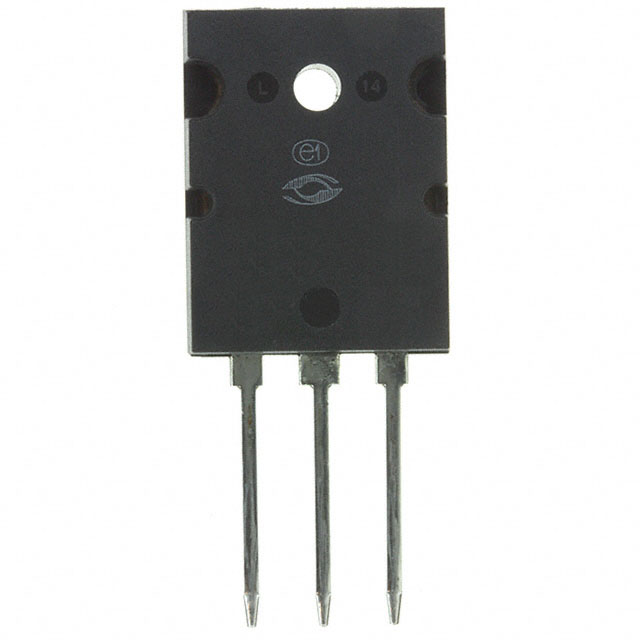

APT6010LFLLG
lmages are for reference only.APT6010LFLLG
MOSFET N-CH 600V 54A TO264
DatasheetTO-264-3, TO-264AA
46,053 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 54A (Tc) Through Hole TO-264 [L]
APT6010LFLLG
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microchip Technology |
| Series | POWER MOS 7® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 6710 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264 [L] |
| Package / Case | TO-264-3, TO-264AA |
| Base Product Number | APT6010 |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

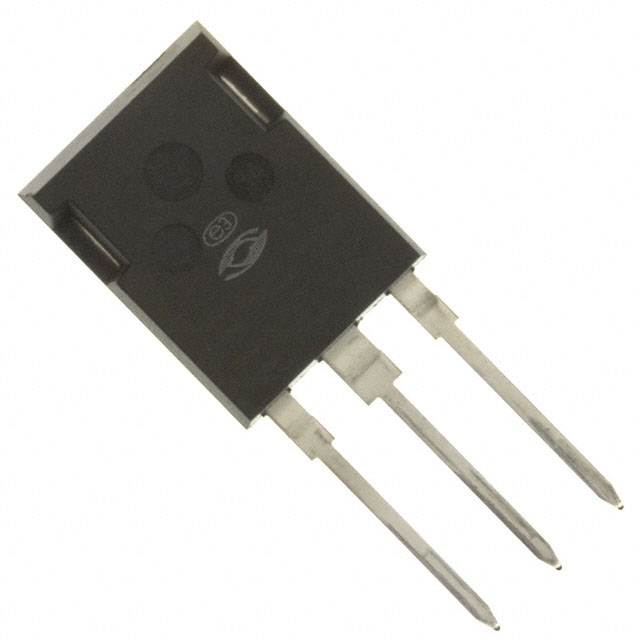

| Part Number | APT6010B2FLLG | APT6010B2LLG | APT6010JFLL | APT6010JLL |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

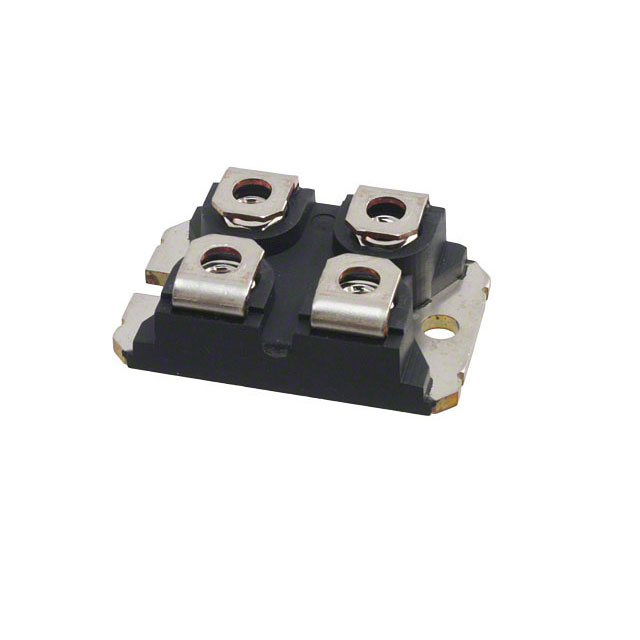

| Description | MOSFET N-CH 600V 54A T-MAX | MOSFET N-CH 600V 54A T-MAX | MOSFET N-CH 600V 47A ISOTOP | MOSFET N-CH 600V 47A ISOTOP |
| Series | POWER MOS 7® | POWER MOS 7® | POWER MOS 7® | POWER MOS 7® |
| Packaging | Tube | Tube | Tube | Tube |
