Product CatalogPart Number
APT70GR120B2
Manufacturer
Microchip TechnologyDescription
IGBT NPT 1200V 160A TO247
Datasheet
DatasheetPackage
TO-247-3
In Stock
24,746 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APT70GR120B2
APT70GR120B2
lmages are for reference only.Payment Methods
Delivery Services
IGBT NPT 1200 V 160 A 961 W Through Hole TO-247
Quick Inquiry
APT70GR120B2
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 160 A |
| Current - Collector Pulsed (Icm) | 280 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 70A |
| Power - Max | 961 W |
| Switching Energy | 3.82mJ (on), 2.58mJ (off) |
| Input Type | Standard |
| Gate Charge | 544 nC |
| Td (on/off) @ 25°C | 33ns/278ns |
| Test Condition | 600V, 70A, 4.3Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | - |
| Base Product Number | APT70GR120 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

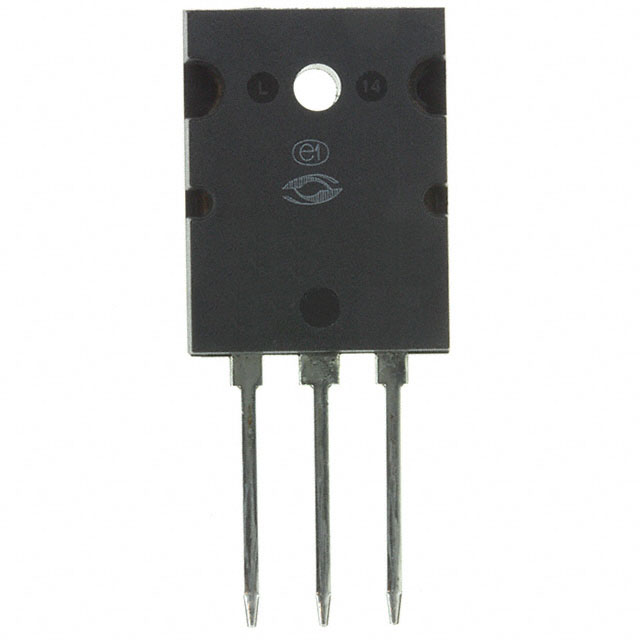

| Part Number | APT70GR120L | APT70GR65B | APT70GR65B2SCD30 | APT30GT60BRG |
| Manufacturer | Microchip Technology | Microchip Technology | Microsemi Corporation | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT NPT 1200V 160A TO264 | IGBT NPT 650V 134A TO247 | INSULATED GATE BIPOLAR TRANSISTO | IGBT NPT 600V 64A TO247 |
| Series | - | - | - | Thunderbolt IGBT® |
| Packaging | Tube | Tube | Bulk | Tube |
