APT8020LFLLG

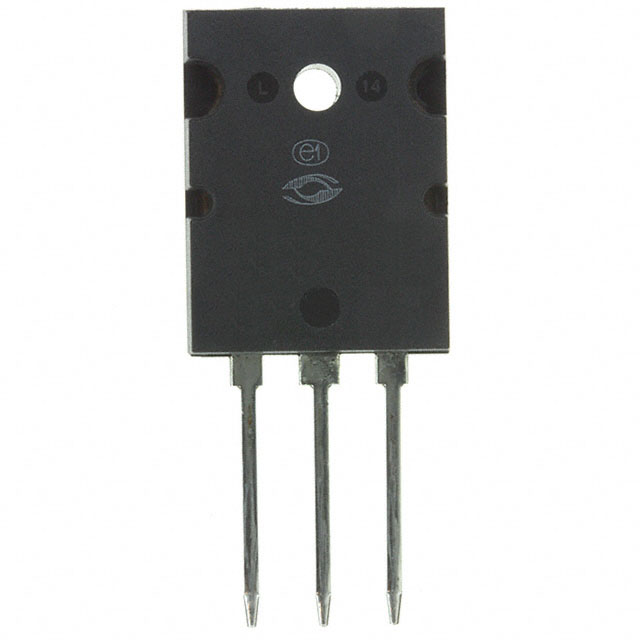

lmages are for reference only.APT8020LFLLG
MOSFET N-CH 800V 38A TO264
DatasheetTO-264-3, TO-264AA
83,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 800 V 38A (Tc) 694W (Tc) Through Hole TO-264 [L]
APT8020LFLLG
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microchip Technology |
| Series | POWER MOS 7® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 220mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 5200 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 694W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264 [L] |
| Package / Case | TO-264-3, TO-264AA |
| Base Product Number | APT8020 |
| Gate Charge (Qg) (Max) @ Vgs | 195 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | APT8020B2FLLG | APT8020B2LLG | APT8020JFLL | APT8020JLL |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 800V 38A T-MAX | MOSFET N-CH 800V 38A T-MAX | MOSFET N-CH 800V 33A ISOTOP | MOSFET N-CH 800V 33A ISOTOP |
| Series | POWER MOS 7® | POWER MOS 7® | POWER MOS 7® | POWER MOS 7® |
| Packaging | Tube | Tube | Tube | Tube |
