Product CatalogPart Number
APXA160ARA220ME60G
Manufacturer
Chemi-ConDescription
CAP ALUM POLY 22UF 20% 16V SMD
Datasheet
DatasheetPackage
Radial, Can - SMD
In Stock
53,698 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APXA160ARA220ME60G
APXA160ARA220ME60G

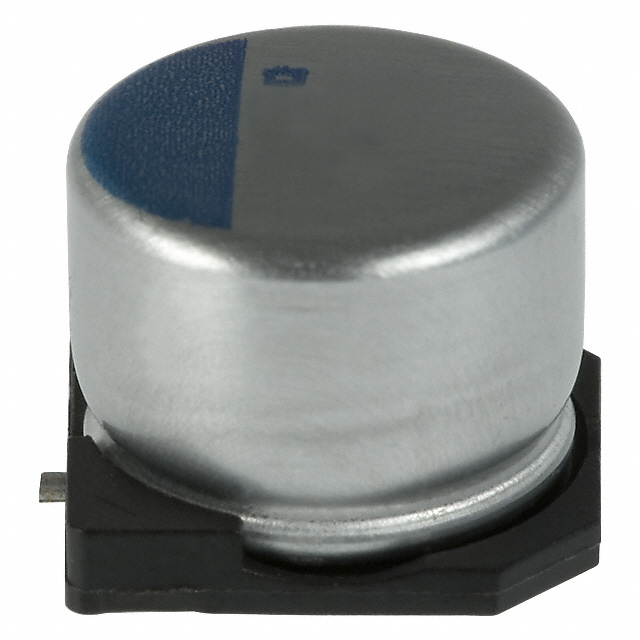

lmages are for reference only.Payment Methods
Delivery Services
22 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 15000 Hrs @ 105°C
Quick Inquiry
APXA160ARA220ME60G
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chemi-Con |
| Series | NPCAP™-PXA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.21 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | APXA160ARA220ME61G | APXA160ARA220MF46G | APXA160ARA221MJC0G | APXA160ARA101MJ80G |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 22UF 20% 16V SMD | CAP ALUM POLY 22UF 20% 16V SMD | CAP ALUM POLY 220UF 20% 16V SMD | CAP ALUM POLY 100UF 20% 16V SMD |
| Series | NPCAP™-PXA | NPCAP™-PXA | NPCAP™-PXA | NPCAP™-PXA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
