Product CatalogPart Number
APXH4R0ARA681MJ80G
Manufacturer
Chemi-ConDescription
CAP ALUM POLY 680UF 20% 4V SMD
Datasheet
DatasheetPackage
Radial, Can - SMD
In Stock
32,963 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APXH4R0ARA681MJ80G
APXH4R0ARA681MJ80G
lmages are for reference only.Payment Methods
Delivery Services
680 µF 4 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 1000 Hrs @ 125°C
Quick Inquiry
APXH4R0ARA681MJ80G
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chemi-Con |
| Series | NPCAP™-PXH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

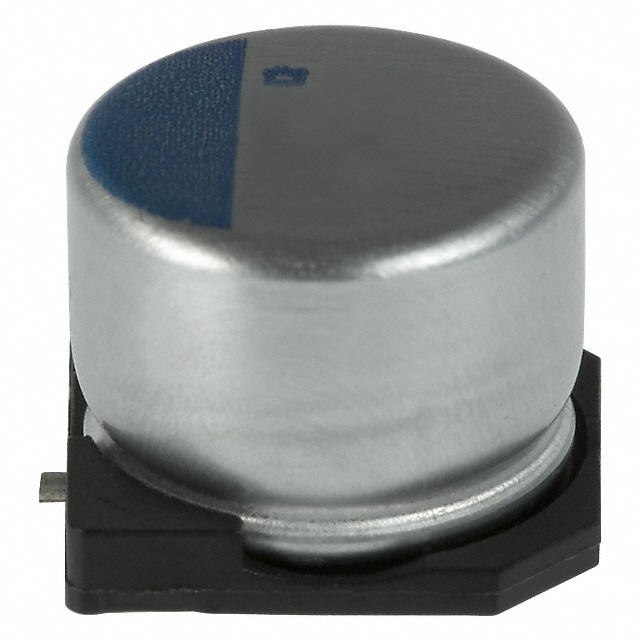

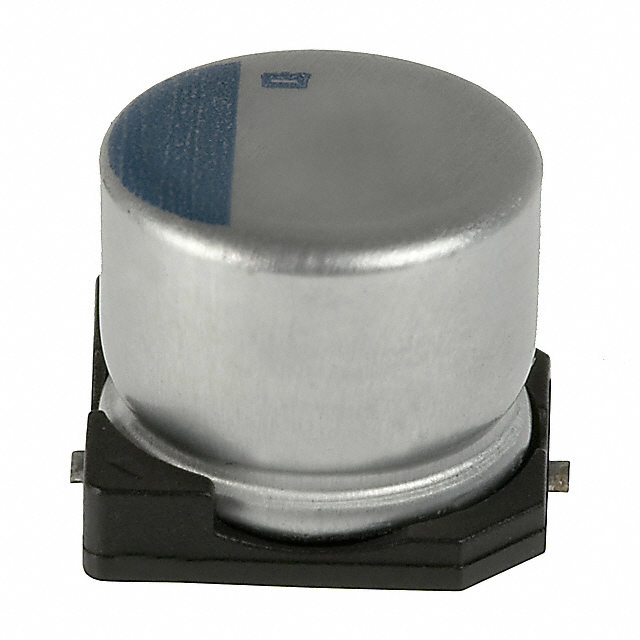

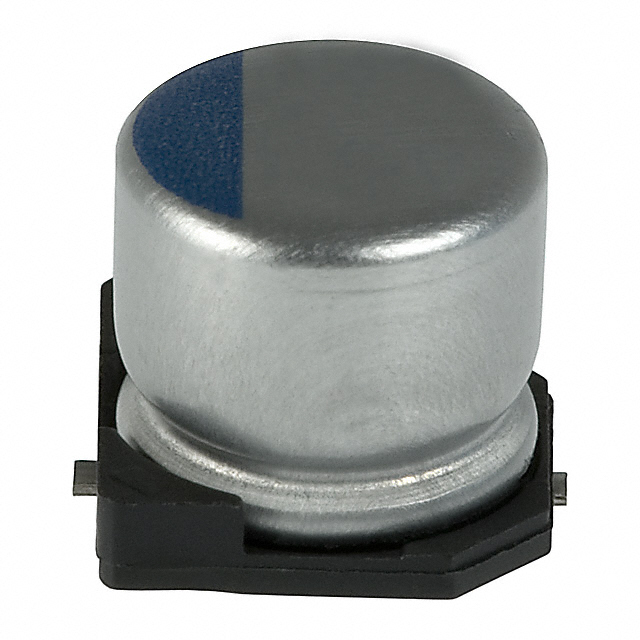

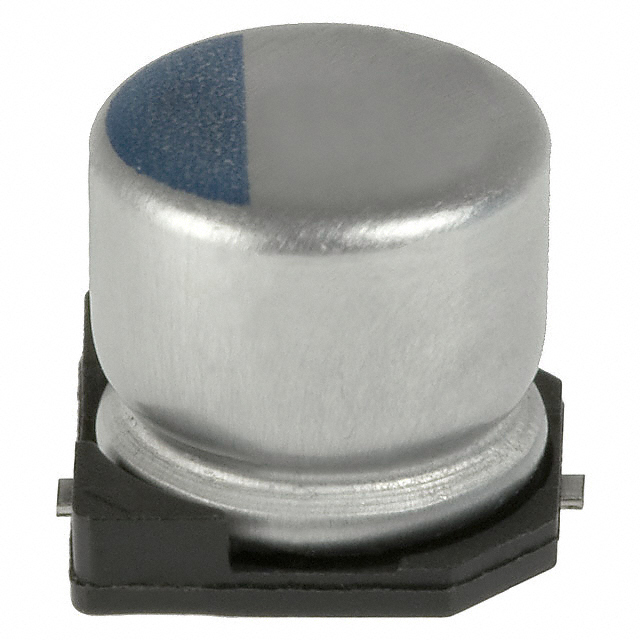

| Part Number | APXH4R0ARA151MF60G | APXH4R0ARA151MF61G | APXH4R0ARA221MH70G | APXA100ARA100MD55G |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 150UF 20% 4V SMD | CAP ALUM POLY 150UF 20% 4V SMD | CAP ALUM POLY 220UF 20% 4V SMD | CAP ALUM POLY 10UF 20% 10V SMD |
| Series | NPCAP™-PXH | NPCAP™-PXH | NPCAP™-PXH | NPCAP™-PXA |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
