AQ05-02HTG

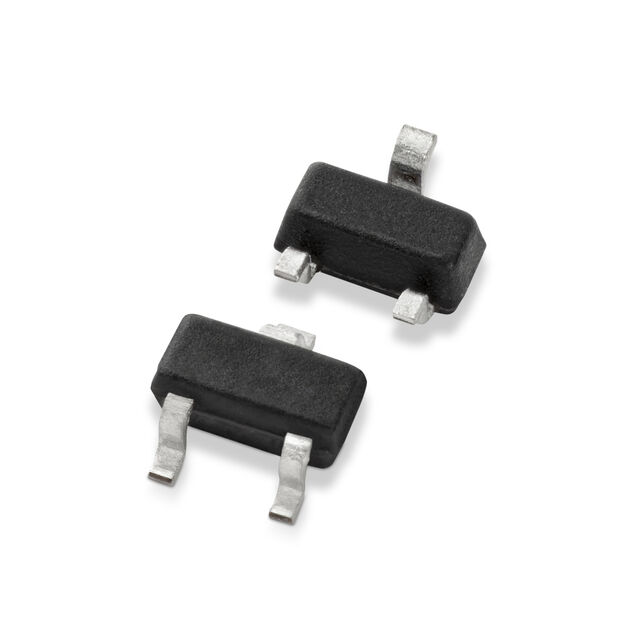

lmages are for reference only.AQ05-02HTG
TVS DIODE 5VWM 13VC SOT23-3
DatasheetTO-236-3, SC-59, SOT-23-3
41,023 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13V Clamp 33A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
AQ05-02HTG
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | AQ, SPA® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Current - Peak Pulse (10/1000µs) | 33A (8/20µs) |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | CAN |
| Capacitance @ Frequency | 290pF @ 1MHz |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | AQ05 |
| Unidirectional Channels | 2 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AQ05-01FLTG | AQ05-01FTG | AQ0502-02RTG | AQ0502-02STG |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | 5V 99A 30KV SOD323FL UNI-DIR TVS | TVS DIODE 5VWM 13VC SOD323 | 5V 2.5A 1PF 22KV SOT523 2CH UNI- | 5V 2.5A 1PF 22KV SOT723 2CH UNI- |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
