AQV210S
lmages are for reference only.AQV210S
SSR RELAY SPST-NO 120MA 0-350V
Datasheet6-SOP (0.173", 4.40mm)
66,313 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 6-SOP (0.173", 4.40mm)
AQV210S
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Panasonic Electric Works |
| Series | PhotoMOS™ AQV |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.14VDC |
| Voltage - Load | 0 V ~ 350 V |
| Load Current | 120 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-SOP (0.173", 4.40mm) |
| Supplier Device Package | 6-SOP |
| Approval Agency | UR |
| Grade | - |
| Qualification | - |
| Base Product Number | AQV210 |
| On-State Resistance (Max) | 35 Ohms |
| Product Attribute |  |
 |
 |
 |

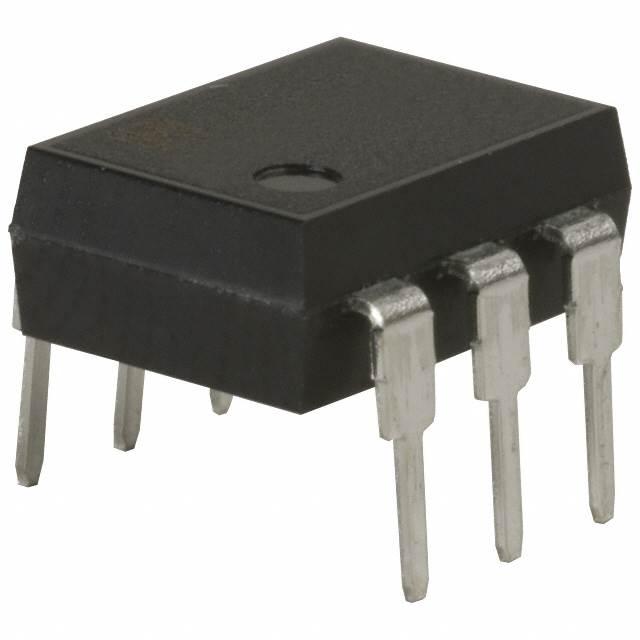

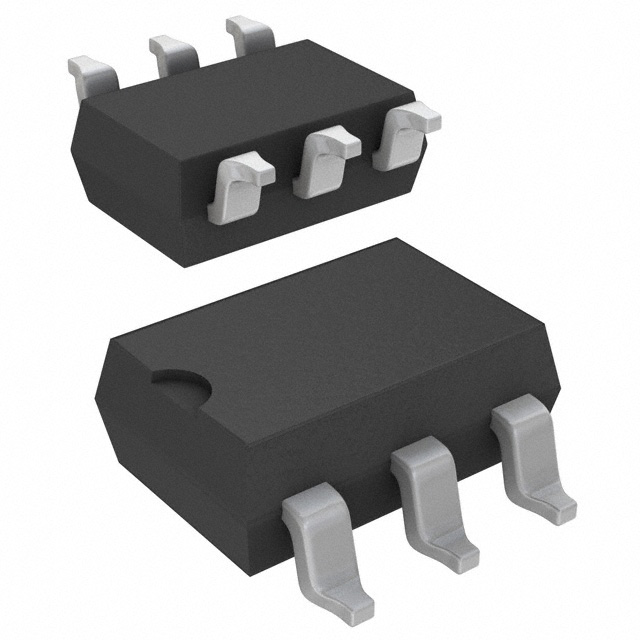

| Part Number | AQV210 | AQV210A | AQV210AZ | AQV210E |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SSR RELAY SPST-NO 130MA 0-350V | SSR RELAY SPST-NO 130MA 0-350V | SSR RELAY SPST-NO 130MA 0-350V | SSR RELAY SPST-NO 130MA 0-350V |
| Series | PhotoMOS™ AQV | PhotoMOS™ AQV | PhotoMOS™ AQV | PhotoMOS™ AQV |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
