AQY284EH
lmages are for reference only.AQY284EH
SSR RELAY SPST-NO 120MA 0-400V
Datasheet4-DIP (0.300", 7.62mm)
44,434 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-DIP (0.300", 7.62mm)
AQY284EH
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Panasonic Electric Works |
| Series | PhotoMOS™ AQY |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.14VDC |
| Voltage - Load | 0 V ~ 400 V |
| Load Current | 120 mA |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Approval Agency | BSI, cURus |
| Grade | - |
| Qualification | - |
| Base Product Number | AQY284 |
| On-State Resistance (Max) | 35 Ohms |
| Product Attribute |  |
 |
 |
 |

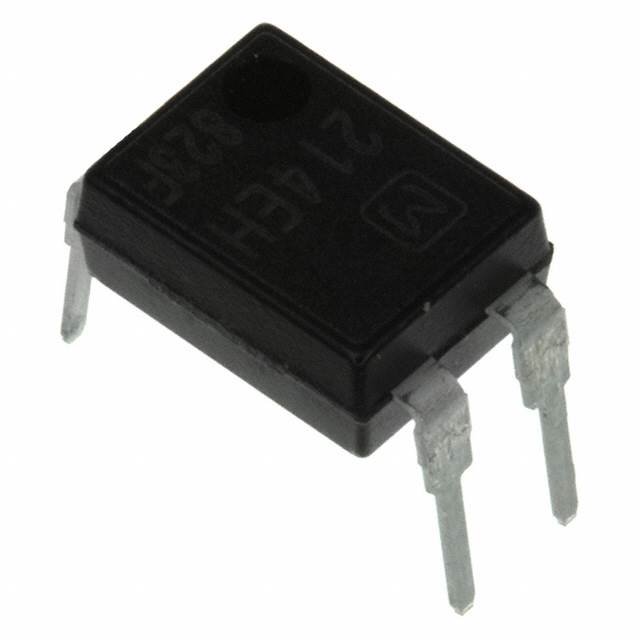

| Part Number | AQY284EHA | AQY284EHAX | AQY284EHAZ | AQY280EH |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SSR RELAY SPST-NO 120MA 0-400V | SSR RELAY SPST-NO 120MA 0-400V | SSR RELAY SPST-NO 120MA 0-400V | SSR RELAY SPST-NO 130MA 0-350V |
| Series | PhotoMOS™ AQY | PhotoMOS™ AQY | PhotoMOS™ AQY | PhotoMOS™ AQY |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
